HALOSTAR Standard

Choose your product version

10 W 12 V G4

10 W 12 V G4

20 W 12 V G4

20 W 12 V G4

20 W 12 V G4

35 W 12 V GY6.35

50 W 12 V GY6.35

50 W 12 V GY6.35

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
HALOSTAR 10 W 12 V G4 G4 10 W 12 V 2000 h 130 lm Yes
HALOSTAR 10 W 12 V G4 G4 10 W 12 V 2000 h 130 lm Yes
HALOSTAR 20 W 12 V G4 G4 20 W 12 V 2000 h 320 lm Yes
HALOSTAR 20 W 12 V G4 G4 20 W 12 V 2000 h 320 lm Yes
HALOSTAR 20 W 12 V G4 G4 20 W 12 V 2000 h 320 lm Yes
HALOSTAR 35 W 12 V GY6.35 GY6.35 35 W 12 V 2000 h 600 lm Yes
HALOSTAR 50 W 12 V GY6.35 GY6.35 50 W 12 V 2000 h 925 lm Yes
HALOSTAR 50 W 12 V GY6.35 GY6.35 50 W 12 V 2000 h 925 lm Yes


HALOSTAR 10 W 12 V G4

Product benefits
  • Brilliant accent light
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • UV filter
  • Contains no mercury
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 10 W
Construction wattage 10.00 W
Nominal voltage 12 V

Photometrical data

Luminous flux 130 lm
Luminous efficacy 13 lm/W
Light color (designation) Warm White
Color temperature 2800 K
Color rendering index Ra 100
Light color 1028
UV protection Yes

Light technical data

Starting time 0 s

Dimensions & Weight

Overall length 33.00 mm
Light center length (LCL) 22,0 mm
Diameter 10.00 mm
Product weight 1.17 g

Additional product data

Base (standard designation) G4
Mercury-free Yes

Capabilities

Dimmable Yes
Burning position Any

Country-specific categorizations

ILCOS HSGST/C/UB-10-12-G4-10/22
Order reference 64415

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G4
Length 33.00 mm
Height 10.00 mm
Width 10.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Brilliant accent light
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • UV filter
  • Contains no mercury
Areas of application
  • General illumination
  • Kitchen lighting
  • Mirror lighting
  • Lighting for reading
  • Entrance lighting
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
Product features
  • Average life: 2,000 h
  • 100 % dimmable
  • Color rendering index Ra: 100
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321150813 Folding box
1		 25 mm x 23 mm x 70 mm 4.17 g 0.04 dm³
4008321150820 Bundle
10		 115 mm x 50 mm x 70 mm 41.70 g 0.40 dm³
4008321150837 Shipping box
200		 272 mm x 238 mm x 155 mm 1049.00 g 10.03 dm³

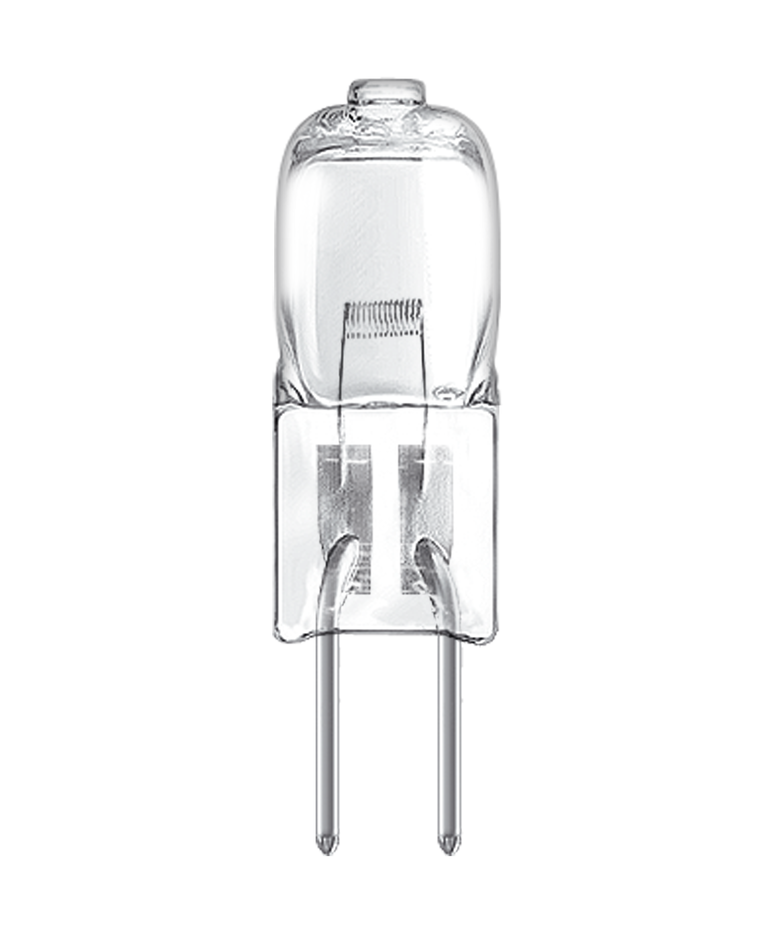

Product image: white background, upright
HALOSTAR®STANDARD 6441 5 10W 12V G4 TIF (7.67 MB)
Product line drawing, front, no dimensions
HALOSTAR®STANDARD 12V SVG (7.35 KB)
