OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
LED VALUE MR 16 36 ° 5.5 W/2700 K GU5.3	GU5.3	5.5 W	100…240 V	15000 h	525 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 5.5 W/2700 K GU5.3	GU5.3	5.5 W	100…240 V	15000 h	525 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 5.5 W/3000 K GU5.3	GU5.3	5.5 W	100…240 V	15000 h	525 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 5.5 W/3000 K GU5.3	GU5.3	5.5 W	100…240 V	15000 h	525 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 5.5 W/4000 K GU5.3	GU5.3	5.5 W	100…240 V	15000 h	525 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 5.5 W/4000 K GU5.3	GU5.3	5.5 W	100…240 V	15000 h	525 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 5.5 W/6500 K GU5.3	GU5.3	5.5 W	100…240 V	15000 h	525 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 5.5 W/6500 K GU5.3	GU5.3	5.5 W	100…240 V	15000 h	525 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 6.5 W/2700 K GU5.3	GU5.3	6.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 6.5 W/2700 K GU5.3	GU5.3	6.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 6.5 W/3000 K GU5.3	GU5.3	6.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 6.5 W/3000 K GU5.3	GU5.3	6.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 6.5 W/4000 K GU5.3	GU5.3	6.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 6.5 W/4000 K GU5.3	GU5.3	6.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 6.5 W/6500 K GU5.3	GU5.3	6.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 6.5 W/6500 K GU5.3	GU5.3	6.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 7.5 W/2700 K GU5.3	GU5.3	7.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 7.5 W/2700 K GU5.3	GU5.3	7.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 7.5 W/3000 K GU5.3	GU5.3	7.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 7.5 W/4000 K GU5.3	GU5.3	7.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 7.5 W/6500 K GU5.3	GU5.3	7.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No
LED VALUE MR 16 36 ° 7.5 W/6500 K GU5.3	GU5.3	7.5 W	100…240 V	15000 h	700 lm	50 W	36 °	No

LED VALUE MR 16 36 ° 5.5 W/2700 K GU5.3

Product benefits

Clear cast shadows for brilliant accent light
Uniform illumination thanks to TIR-reflector and fly eye single optic design
Very low energy consumption
Good quality of light
Easy replacement of halogen lamps thanks to compact design
Easy and cost-effective operation
No UV and near-IR radiation in the light beam
Reliable operation thanks to brand quality

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	5.5 W
Construction wattage	5.50 W
Nominal voltage	100…240 V
Claimed equiv. conventional lamp power	50 W
Nominal current	34 mA
Type of current	AC
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Power factor λ	0.70

Photometrical data

Luminous intensity	880 cd
Luminous flux	525 lm
Nominal useful luminous flux 90°	470 lm
Luminous efficacy	95 lm/W
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	80
Light color	827
Standard deviation of color matching	≤6 sdcm
Rated peak intensity	880 cd

Light technical data

Beam angle	36 °
Starting time	< 0.5 s

Dimensions & Weight

Overall length	48.00 mm
Diameter	50.00 mm
Product weight	29.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+45 °C
Maximum temperature at tc test point	≤ 100 °C

Lifespan

Number of switching cycles

100000

Additional product data

Base (standard designation)	GU5.3
Mercury content	0.0 mg
Mercury-free	Yes
Design / version	Frosted

Capabilities

Dimmable

Certificates & Standards

Type of protection

IP20

Country-specific categorizations

Order reference

LVMR16365,5W/82

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	GU5.3
Length	48.00 mm
Height	50.00 mm
Width	50.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Clear cast shadows for brilliant accent light
Uniform illumination thanks to TIR-reflector and fly eye single optic design
Very low energy consumption
Good quality of light
Easy replacement of halogen lamps thanks to compact design
Easy and cost-effective operation
No UV and near-IR radiation in the light beam
Reliable operation thanks to brand quality

Areas of application

Residential interiors
Hospitality
Restaurants
Museums, art galleries

Product features

High-quality LED replacement for halogen reflector lamps
High color consistency: < 6 SDCM
No electronic transformer is needed
Surge protection: up to 1,000 V
Mercury-free lamps

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854297410	Folding box 1	51 mm x 51 mm x 54 mm	36.00 g	0.14 dm³
4099854297427	Shipping box 10	268 mm x 113 mm x 69 mm	408.00 g	2.09 dm³

Product images and graphics

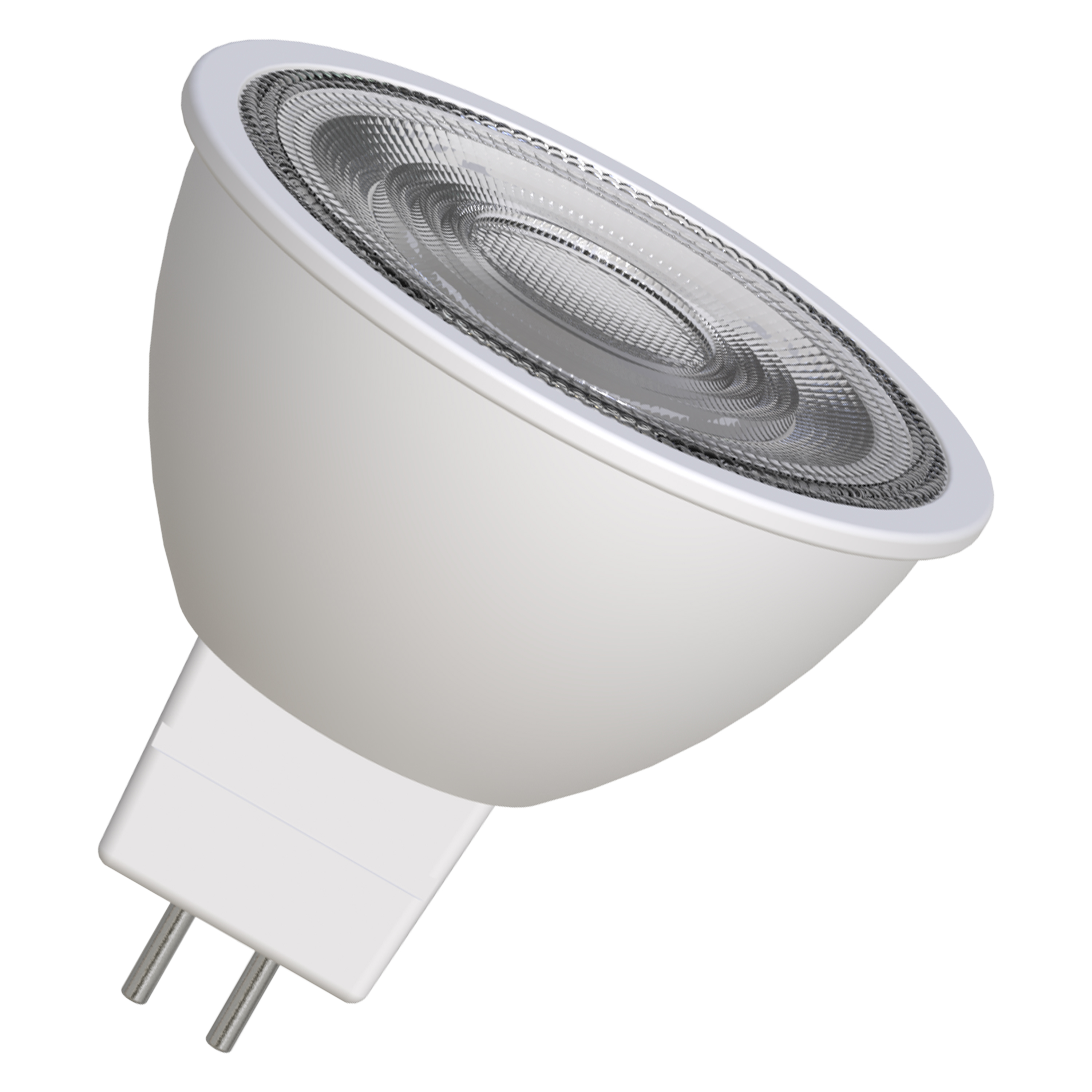

Product image: white background, diagonal
LVMR16 GU5.3 JPG (1.36 MB)

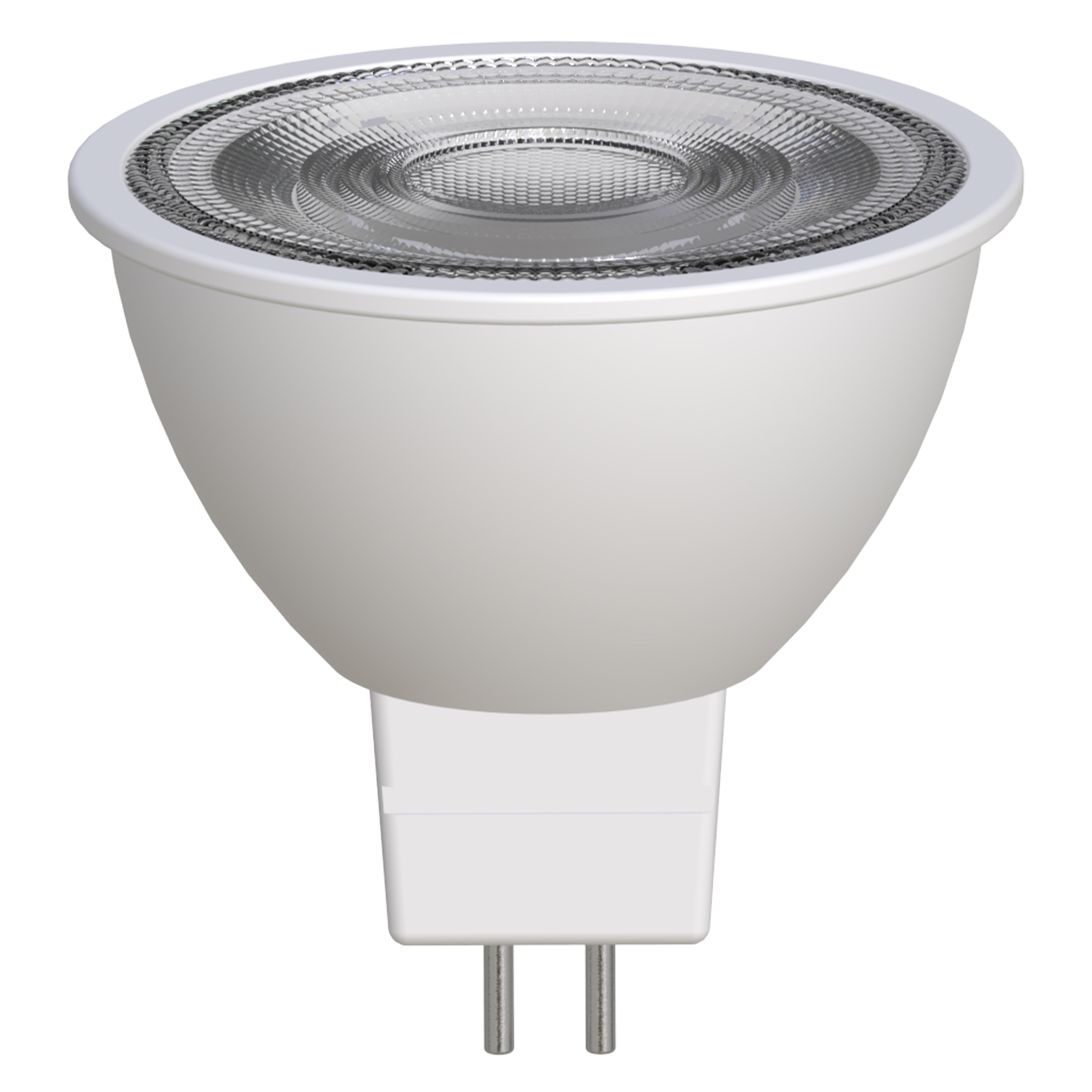

Product image: white background, upright
LVMR1636 JPG (1.31 MB)

Product line drawing with numbers
LVMR16 GU5.3 SVG (8.86 KB)

Photometric and lighting design files

IES file (IES)
LV MR1636 5.5W 230V GU 5.3 IES (37.1 KB)

IES files (IES, additional)
LV MR1636 5.5W 120V GU 5.3 IES (37.12 KB)
