LED PERFORMANCE MR 16 COB 12 V

Choose your product version

24 ° 6 W/2700 K GU5.3

60 ° 6 W/2700 K GU5.3

10 ° 6 W/2700 K GU5.3

36 ° 6 W/2700 K GU5.3

24 ° 6 W/3000 K GU5.3

60 ° 6 W/3000 K GU5.3

10 ° 6 W/3000 K GU5.3

36 ° 6 W/3000 K GU5.3

36 ° 6 W/4000 K GU5.3

60 ° 6 W/4000 K GU5.3

10 ° 6 W/4000 K GU5.3

24 ° 6 W/4000 K GU5.3

36 ° 6 W/6500 K GU5.3

60 ° 6 W/6500 K GU5.3

10 ° 6 W/6500 K GU5.3

24 ° 6 W/6500 K GU5.3

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED PFM MR16 24 ° 6 W/2700 K GU5.3 GU5.3 6 W 12 V 40000 h 600 lm 50 W 24 ° Yes
LED PFM MR16 60 ° 6 W/2700 K GU5.3 GU5.3 6 W 12 V 40000 h 600 lm 50 W 60 ° Yes
LED PFM MR16 10 ° 6 W/2700 K GU5.3 GU5.3 6 W 12 V 40000 h 600 lm 50 W 10 ° Yes
LED PFM MR16 36 ° 6 W/2700 K GU5.3 GU5.3 6 W 12 V 40000 h 600 lm 50 W 36 ° Yes
LED PFM MR16 24 ° 6 W/3000 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 24 ° Yes
LED PFM MR16 60 ° 6 W/3000 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 60 ° Yes
LED PFM MR16 10 ° 6 W/3000 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 10 ° Yes
LED PFM MR16 36 ° 6 W/3000 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 36 ° Yes
LED PFM MR16 36 ° 6 W/4000 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 36 ° Yes
LED PFM MR16 60 ° 6 W/4000 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 60 ° Yes
LED PFM MR16 10 ° 6 W/4000 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 10 ° Yes
LED PFM MR16 24 ° 6 W/4000 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 24 ° Yes
LED PFM MR16 36 ° 6 W/6500 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 36 ° Yes
LED PFM MR16 60 ° 6 W/6500 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 60 ° Yes
LED PFM MR16 10 ° 6 W/6500 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 10 ° Yes
LED PFM MR16 24 ° 6 W/6500 K GU5.3 GU5.3 6 W 12 V 40000 h 650 lm 50 W 24 ° Yes


LED PFM MR16 24 ° 6 W/2700 K GU5.3

Product benefits
  • Attractive lamp appearance
  • Easy replacement of halogen lamps thanks to compact design
  • Clear cast shadows for brilliant accent light
  • Good quality of light
  • Creation of the preferred light ambience thanks to dimming
  • Very low energy consumption
  • Easy installation
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 6 W
Construction wattage 6.00 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 50 W
Nominal current 550 mA
Type of current AC/DC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Total harmonic distortion 99,8 %
Power factor λ ≥ 0.90

Photometrical data

Luminous intensity 3000 cd
Luminous flux 600 lm
Nominal useful luminous flux 90° 550 lm
Luminous efficacy 100 lm/W
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥90
Light color 927
Rated peak intensity 3000 cd

Light technical data

Beam angle 24 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 44.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 35.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) GU5.3
Mercury content 0.0 mg

Capabilities

Dimmable Yes

Certificates & Standards

Type of protection IP20
Standards CB, EMC, RoHS

Country-specific categorizations

Order reference LPMR165024D 6W/

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) GU5.3
Length 44.00 mm
Height 50.00 mm
Width 50.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Attractive lamp appearance
  • Easy replacement of halogen lamps thanks to compact design
  • Clear cast shadows for brilliant accent light
  • Good quality of light
  • Creation of the preferred light ambience thanks to dimming
  • Very low energy consumption
  • Easy installation
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Product features
  • Real COB design
  • Input voltage: 12 VAC
  • Mercury-free lamps
  • Lifetime up to 40,000 h
  • Dimmable
  • High color consistency: ≤ 4 SDCM
  • Color rendering index Ra: ≥ 90
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854024597 Folding box
1		 49 mm x 49 mm x 62 mm 42.00 g 0.15 dm³
4099854024603 Shipping box
10		 255 mm x 107 mm x 72 mm 500.00 g 1.96 dm³

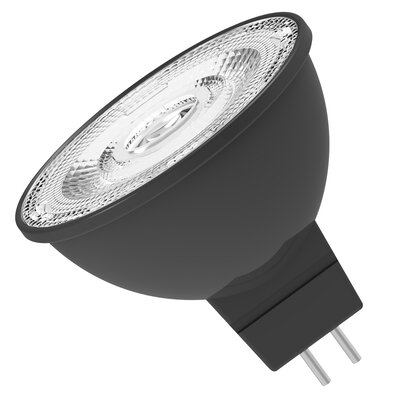

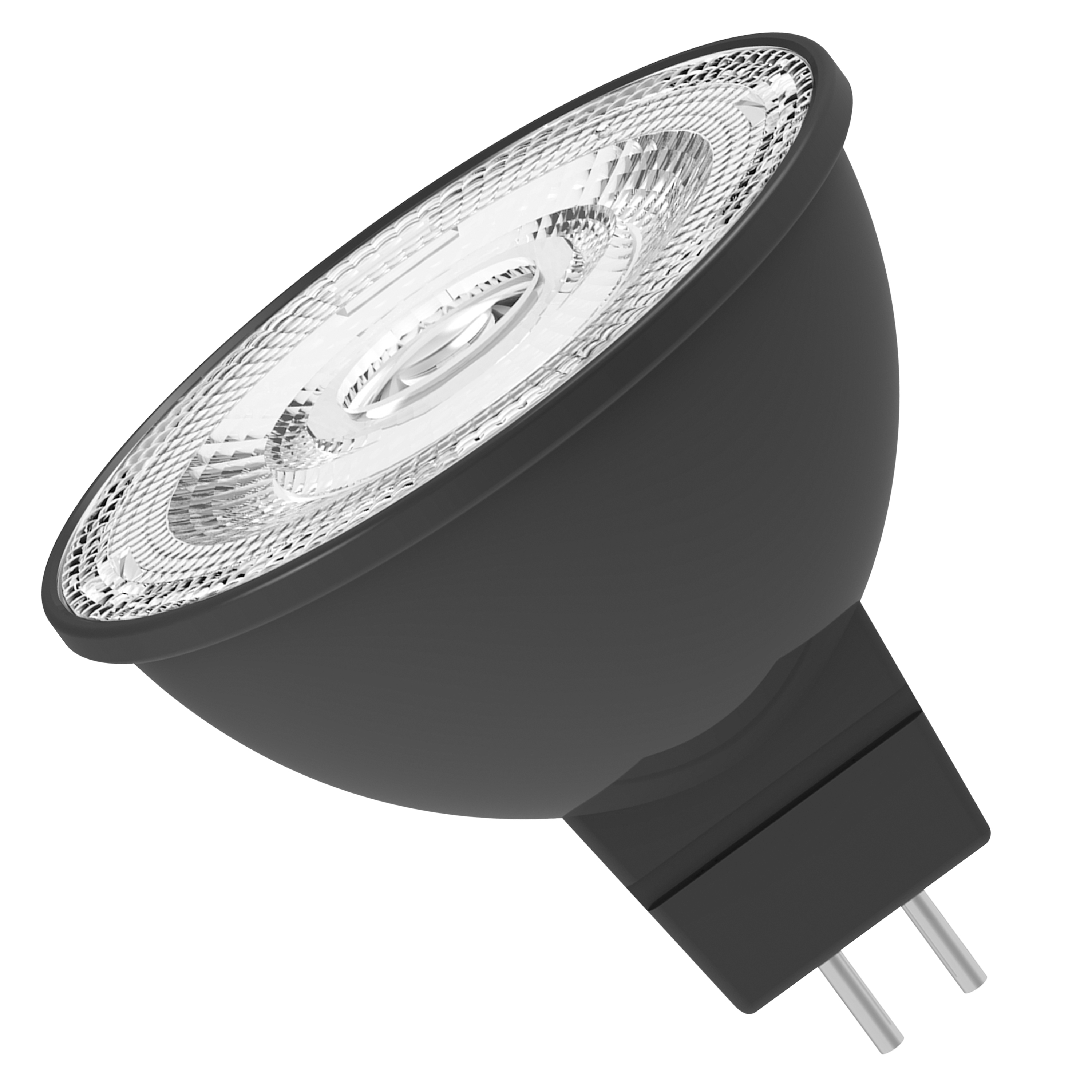

Product image: white background, diagonal
LED PMR165024D COB GU5 .3 JPG (1.68 MB)

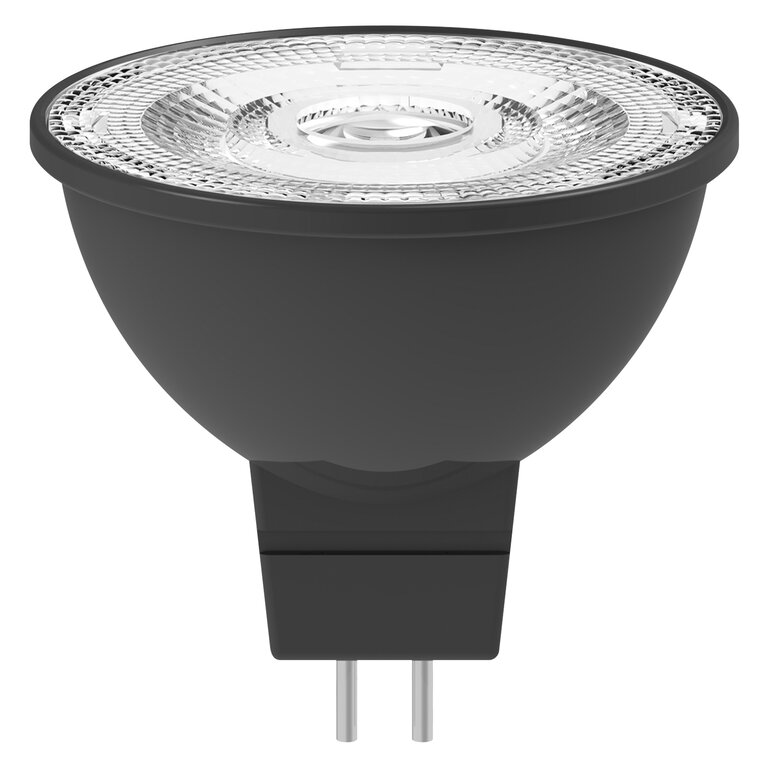

Product image: white background, upright
LED PMR165024D COB GU5 .3 JPG (1.63 MB)
Product line drawing with numbers
LED PMR165024D COB GU5 .3 SVG (3.99 KB)

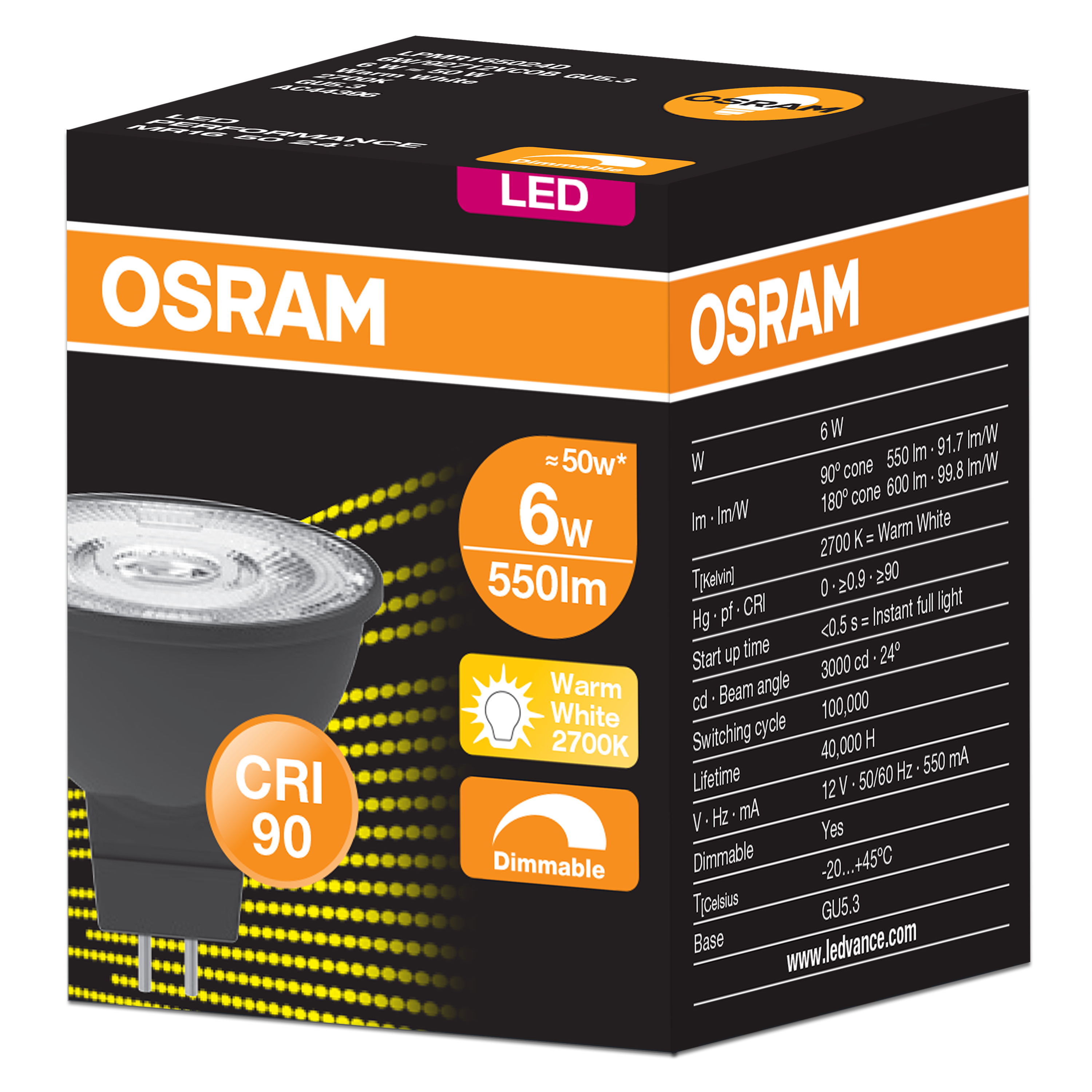

Packaging image, spacial
LPMR165024D 6W 927 12V COB GU5.3 OSRAM JPG (1.93 MB)
IES file (IES)
LPMR165024D 6W 927 12V COB GU5.3 IES (56.84 KB)
Light distribution curve type polar
LPMR165024D 6W 927 12V COB GU5.3 SVG (18.21 KB)
