CLASSIC B

Choose your product version

25 W 230 V E14

25 W 230 V E27

25 W 230 V E14

40 W 230 V E14

40 W 230 V E27

60 W 230 V E14

60 W 230 V E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux
CLAS B FR 25 W 230 V E14 E14 25 W 230 V 1000 h
CLAS B FR 25 W 230 V E27 E27 25 W 230 V 1000 h
CLAS B CL 25 W 230 V E14 E14 25 W 230 V 1000 h 210 lm
CLAS B FR 40 W 230 V E14 E14 40 W 230 V 1000 h 400 lm
CLAS B FR 40 W 230 V E27 E27 40 W 230 V 1000 h 400 lm
CLAS B FR 60 W 230 V E14 E14 60 W 230 V 1000 h 660 lm
CLAS B FR 60 W 230 V E27 E27 60 W 230 V 1000 h 660 lm


CLAS B FR 60 W 230 V E27

Product benefits
  • Brilliant light (CL clear version)
  • Reduced glare and softened shadows (FR frosted version)
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 60 W
Construction wattage 60.00 W
Nominal voltage 230 V

Photometrical data

Luminous flux 660 lm
Luminous efficacy 11 lm/W
Color temperature 2700 K
Color rendering index Ra 100
Light color 1027

Light technical data

Starting time 0 s

Dimensions & Weight

Overall length 98.50 mm
Diameter 35,0 mm
Product weight 15.1 g

Additional product data

Base (standard designation) E27
Mercury-free Yes
Design / version Frosted

Capabilities

Burning position Base down only

Country-specific categorizations

ILCOS IBB/F-60-230-E27-35
Order reference CLAS B FR 60W 2

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 98.50 mm
Height 35,0 mm
Width 35,0 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Brilliant light (CL clear version)
  • Reduced glare and softened shadows (FR frosted version)
Areas of application
  • Domestic applications
  • Shops, hotels and restaurants
  • Meeting rooms
  • Shopping centers
  • Luminaires with E27 or B22d holders (screw or bajonet holders)
Product features
  • Non-oxidizing aluminum base
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321411396 Folding box
1		 102 mm x 36 mm x 36 mm 23.00 g 0.13 dm³
4052899351059 Bundle
10
4008321411402 Bundle
10		 72 mm x 103 mm x 182 mm 201.00 g 1.35 dm³
4008321411419 Shipping box
100		 371 mm x 222 mm x 194 mm 2208.00 g 15.98 dm³
4058075143241 Shipping box
50		 371 mm x 191 mm x 116 mm 1138.00 g 8.22 dm³
Product image: white background, diagonal
324416_CLASSIC B E27 TIF (21.43 MB)
Product line drawing with letters
65_CLASSIC B E27 SVG (9.23 KB)

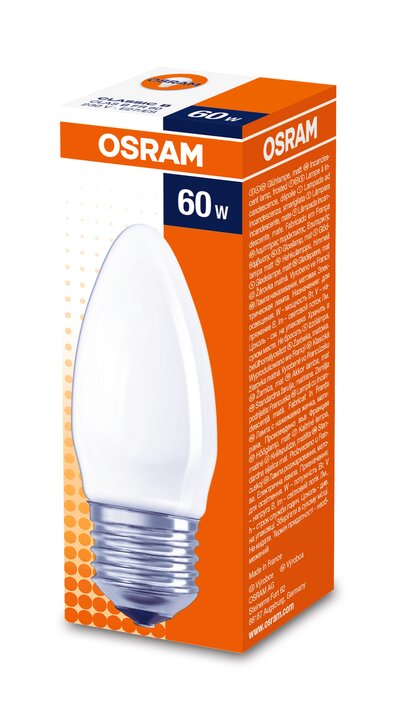

Packaging image, spacial
499827_CLASSIC B FR 60 W 230V E2 TIF (10.42 MB)
