Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| Spotlight Recess Set Incl. Osram LED 3x2.6W GU10 White | 2.60 W | 100000 | 36 ° | 230 lm | No |

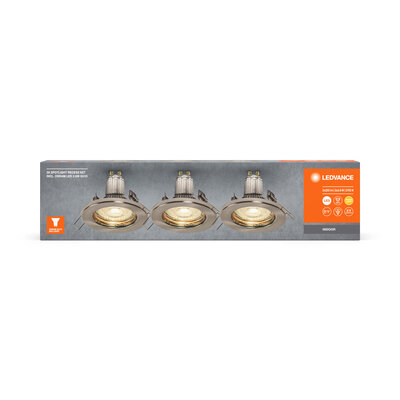

| Spotlight Recess Set Incl. Osram LED 3x2.6W GU10 Brushed Nickel | 2.60 W | 100000 | 36 ° | 230 lm | No |
| Nominal wattage | 2.60 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 25.000 mA |
| Inrush current | 0.3 A |
| Inrush current time Th50 | 260 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 53 |
| Max. number of luminaires per miniature circuit breaker C10 | 53 |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Power factor λ | > 0.4 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Luminous flux | 230 lm |
| Total luminous flux of contained light sources | 230 lm |
| Luminous efficacy | 88 lm/W |
| Color temperature | 2700 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Luminous intensity | 400 cd |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0,4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 36 ° |
| Diameter | 80.00 mm |
| Height | 95.00 mm |
| Product weight | 130.00 g |
| Product color | Brushed nickel |
| Housing color | Brushed nickel |
| Body material | Steel |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 60,0 mm |
| Mounting depth | 140 mm |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | GU10 |
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Number of illuminants | 3 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075611290 | Folding box 3 |
100 mm x 72 mm x 287 mm | 455.00 g | 2.07 dm³ |
| 4058075611306 | Shipping box 18 |
237 mm x 217 mm x 319 mm | 3056.00 g | 16.41 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075611290 | 941469550 |
