OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
LED ECO STICK 7 W/2700 K B22d	B22d	7 W	220…240 V	12000 h	550 lm	10 W	200 °	No
LED ECO STICK 7 W/2700 K E27	E27	7 W	220…240 V	12000 h	550 lm	10 W	200 °	No
LED ECO STICK 7 W/4000 K B22d	B22d	7 W	220…240 V	12000 h	600 lm	13 W	200 °	No
LED ECO STICK 7 W/4000 K E27	E27	7 W	220…240 V	12000 h	600 lm	13 W	200 °	No
LED ECO STICK 7 W/6500 K B22d	B22d	7 W	220…240 V	12000 h	600 lm	13 W	200 °	No
LED ECO STICK 7 W/6500 K E27	E27	7 W	220…240 V	12000 h	600 lm	13 W	200 °	No
LED ECO STICK 9 W/2700 K B22d	B22d	9 W	220…240 V	12000 h	750 lm	15 W	200 °	No
LED ECO STICK 9 W/2700 K E27	E27	9 W	220…240 V	12000 h	750 lm	15 W	200 °	No
LED ECO STICK 9 W/4000 K B22d	B22d	9 W	220…240 V	12000 h	800 lm	15 W	200 °	No
LED ECO STICK 9 W/4000 K E27	E27	9 W	220…240 V	12000 h	800 lm	15 W	200 °	No
LED ECO STICK 9 W/6500 K B22d	B22d	9 W	220…240 V	12000 h	800 lm	15 W	200 °	No
LED ECO STICK 9 W/6500 K E27	E27	9 W	220…240 V	12000 h	800 lm	15 W	200 °	No
LED ECO STICK 11 W/2700 K B22d	B22d	11 W	220…240 V	12000 h	1000 lm	17 W	200 °	No
LED ECO STICK 11 W/2700 K E27	E27	11 W	220…240 V	12000 h	1000 lm	17 W	200 °	No
LED ECO STICK 11 W/4000 K B22d	B22d	11 W	220…240 V	12000 h	1050 lm	20 W	200 °	No
LED ECO STICK 11 W/4000 K E27	E27	11 W	220…240 V	12000 h	1050 lm	20 W	200 °	No
LED ECO STICK 11 W/6500 K B22d	B22d	11 W	220…240 V	12000 h	1050 lm	20 W	200 °	No
LED ECO STICK 11 W/6500 K E27	E27	11 W	220…240 V	12000 h	1050 lm	20 W	200 °	No
LED ECO STICK 13 W/2700 K B22d	B22d	13 W	220…240 V	12000 h	1200 lm	23 W	200 °	No
LED ECO STICK 13 W/2700 K E27	E27	13 W	220…240 V	12000 h	1200 lm	23 W	200 °	No
LED ECO STICK 13 W/4000 K B22d	B22d	13 W	220…240 V	12000 h	1250 lm	23 W	200 °	No
LED ECO STICK 13 W/4000 K E27	E27	13 W	220…240 V	12000 h	1250 lm	23 W	200 °	No
LED ECO STICK 13 W/6500 K B22d	B22d	13 W	220…240 V	12000 h	1250 lm	23 W	200 °	No
LED ECO STICK 13 W/6500 K E27	E27	13 W	220…240 V	12000 h	1250 lm	23 W	200 °	No

LED ECO STICK 13 W/2700 K E27

Product benefits

Low energy consumption
Attractive lamp appearance

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	13 W
Construction wattage	13.00 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	23 W
Nominal current	102 mA
Type of current	AC
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Power factor λ	> 0.50

Photometrical data

Luminous flux	1200 lm
Nominal useful luminous flux 90°	1200 lm
Luminous efficacy	92 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	≥80
Light color	827
Standard deviation of color matching	≤6 sdcm

Light technical data

Beam angle	200 °
Starting time	< 0.5 s

Dimensions & Weight

Overall length	120.00 mm
Diameter	43.00 mm
Maximum diameter	43 mm
Product weight	32.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+30 °C

Lifespan

Number of switching cycles

100000

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg

Capabilities

Dimmable

Certificates & Standards

Standards

CB, RoHS

Country-specific categorizations

Order reference

LECO STICK 13W/

LOGISTICAL DATA

Temperature range at storage

-20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	E27
Length	120.00 mm
Height	43.00 mm
Width	43.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Low energy consumption
Attractive lamp appearance

Areas of application

All domestic rooms, especially where the lamps are visible
Wherever compact and efficient lamps are needed
Where the lamps need to last a long time or have to withstand frequent on/off switching

Product features

LED alternative to conventional lamps
Mercury-free lamps
Lifetime: up to 8,000 h

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075667419	Folding box 1	46 mm x 46 mm x 127 mm	45.00 g	0.27 dm³
4058075667426	Shipping box 10	240 mm x 102 mm x 141 mm	533.00 g	3.45 dm³

Product images and graphics

Product image: white background, diagonal with OSRAM logo
LED ECO STICK 11W-13W E27 JPG (1.34 MB)

Product image: white background, upright, OSRAM logo
LED ECO STICK 11W-13W E27 JPG (1.23 MB)

Product line drawing, front, no dimensions
LED STICK Lamp SVG (5.46 KB)

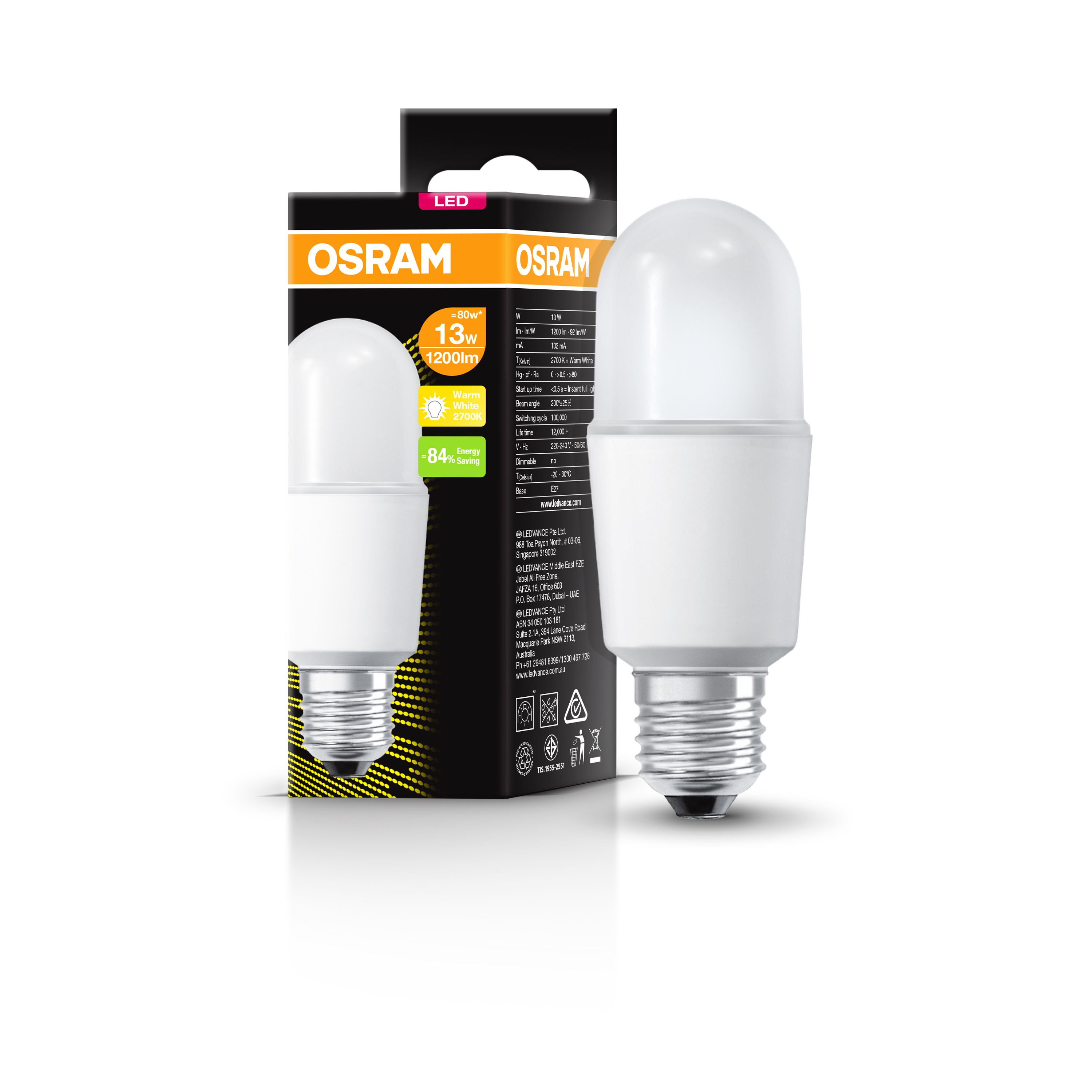

Combo Shot = Product Beauty Shot + Packaging Image
LED ECO STICK 13W/827 E27 JPG (1.59 MB)
