プロフェッショナル

LED VALUE CLASSIC P FILAMENT

Choose your product version

4 W/2700 K B22d GEN2

4 W/2700 K E14 FR GEN2

4 W/2700 K E14 GEN2

4 W/2700 K E27 GEN2

4 W/2700 K E27 GEN2

4 W/4000 K E14 GEN2

4 W/4000 K E14

4 W/4000 K E14 CL

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS P FIL 4 W/2700 K B22d GEN2 B22d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/2700 K E14 FR GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/2700 K E14 GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/2700 K E27 GEN2 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/2700 K E27 GEN2 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/4000 K E14 GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/4000 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS P FIL 4 W/4000 K E14 CL E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No


LED VALUE CLAS P FIL 4 W/4000 K E14

Product benefits
  • Very low energy consumption
  • Lamps with innovative LED "filament" technology
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 32 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 77.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 15.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LV CLP 4W/840 2

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E14
Correlated colour temperature type SINGLE_VALUE
Length 77.00 mm
Height 45.00 mm
Width 45.00 mm
EPREL ID 523182
Model number AC32371

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Very low energy consumption
  • Lamps with innovative LED "filament" technology
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Areas of application
  • Perfect for decorative installations
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
  • Domestic applications
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Mercury-free lamps
  • Beam angle: up to 300°
  • Lifetime up to 15,000 h
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075751576 Folding box
1		 51 mm x 51 mm x 107 mm 25.00 g 0.28 dm³
4058075751583 Shipping box
10		 266 mm x 109 mm x 121 mm 376.00 g 3.51 dm³
4099854260087 Shipping box
10		 266 mm x 109 mm x 121 mm 396.00 g 3.51 dm³

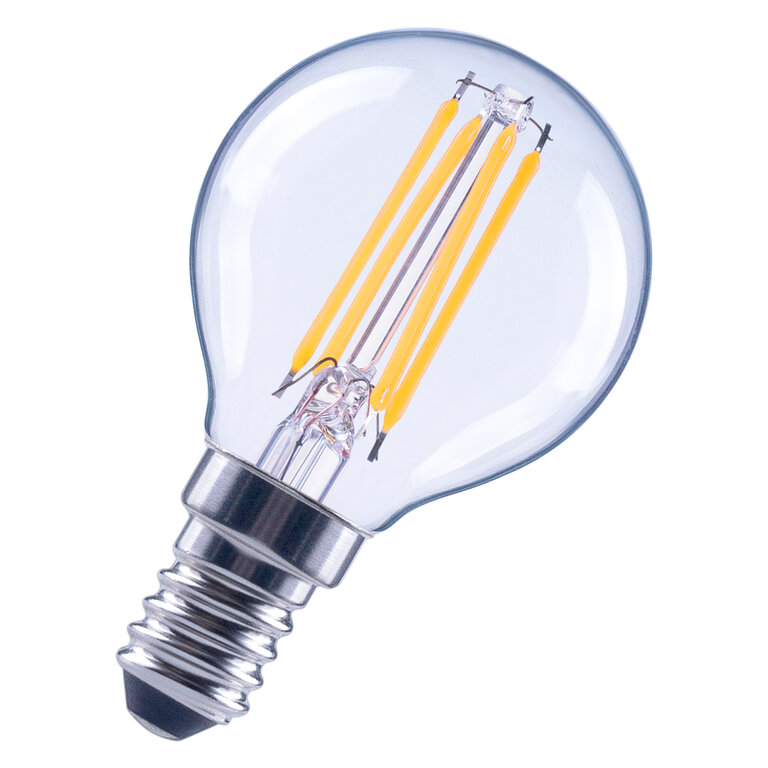

Product image: white background, diagonal
LV CLP E14 JPG (1.32 MB)

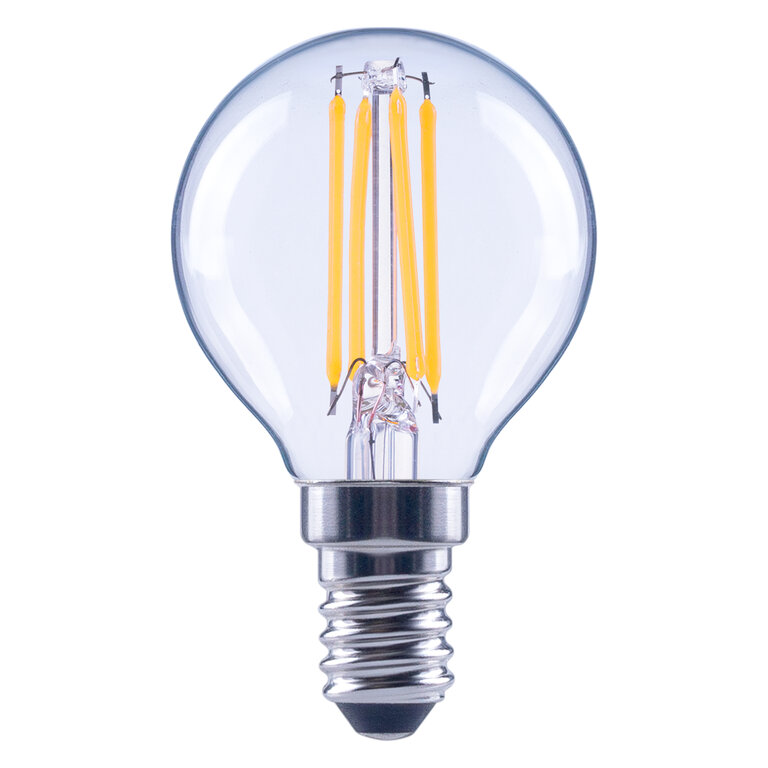

Product image: white background, upright
LV CLP E14 JPG (1.05 MB)
Product line drawing with letters
1906_LED_CLASSIC P 25_ FIL GOLD_E14 SVG (12.38 KB)
Product line drawing, front, no dimensions
1906_LED_CLASSIC P 25_ FIL GOLD_E14 SVG (9.47 KB)
Energy label
EL-4058075751576-AC323 71 PDF (21.42 KB)
Logos and pictos
E left SVG (1.9 KB)
Logos and pictos
E left BW SVG (1.07 KB)
Logos and pictos
E right SVG (1.86 KB)
Logos and pictos
E right BW SVG (1.07 KB)
