HQL LED HIGHBAY

Choose your product version

400 120 ° 140 W/6500 K E40

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
HQL HIGHBAY 400 120 ° 140 W/6500 K E40 E40 140 W 220…240 V 50000 h 20000 lm 400 W 120 ° No


HQL HIGHBAY 400 120 ° 140 W/6500 K E40

Product benefits
  • Energy savings of up to 65 % when replacing mercury vapor lamps (HQL)
  • Effective thermal management for wide operating temperature range
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 140 W
Construction wattage 140.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 400 W
Nominal current 650 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.90

Photometrical data

Luminous flux 20000 lm
Luminous efficacy 142 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 120 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 310.00 mm
Diameter 230.00 mm
Product weight 1260.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) E40
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP40

Country-specific categorizations

Order reference HQLLPHB20000 14

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E40
Length 310.00 mm
Height 230.00 mm
Width 230.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 65 % when replacing mercury vapor lamps (HQL)
  • Effective thermal management for wide operating temperature range
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
Areas of application
  • LED alternative for applications requiring a high luminous flux
  • Industrial and storage facilities
  • Outdoor applications only in suitable luminaires
Product features
  • Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains
  • Replacement for other HID: Suitable for operation with line voltage without control gear
  • Power factor: 0.9
  • Type of protection: IP40
  • High surge protection: up to 4 kV (L-N)
Equipment / Accessories
  • Safety sling for lamp included
Safety advice
  • The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. Safety sling has to be installed.
  • Only suitable for temperatures of up to 50 °C inside of the luminaire.
  • Not suitable for operation with ignitors.
  • Operation on the capacitor can lead to a reduction of the power factor of the system.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075279513 Folding box
1		 247 mm x 247 mm x 333 mm 1481.00 g 20.32 dm³
4058075279520 Shipping box
4		 515 mm x 515 mm x 355 mm 6601.00 g 94.15 dm³

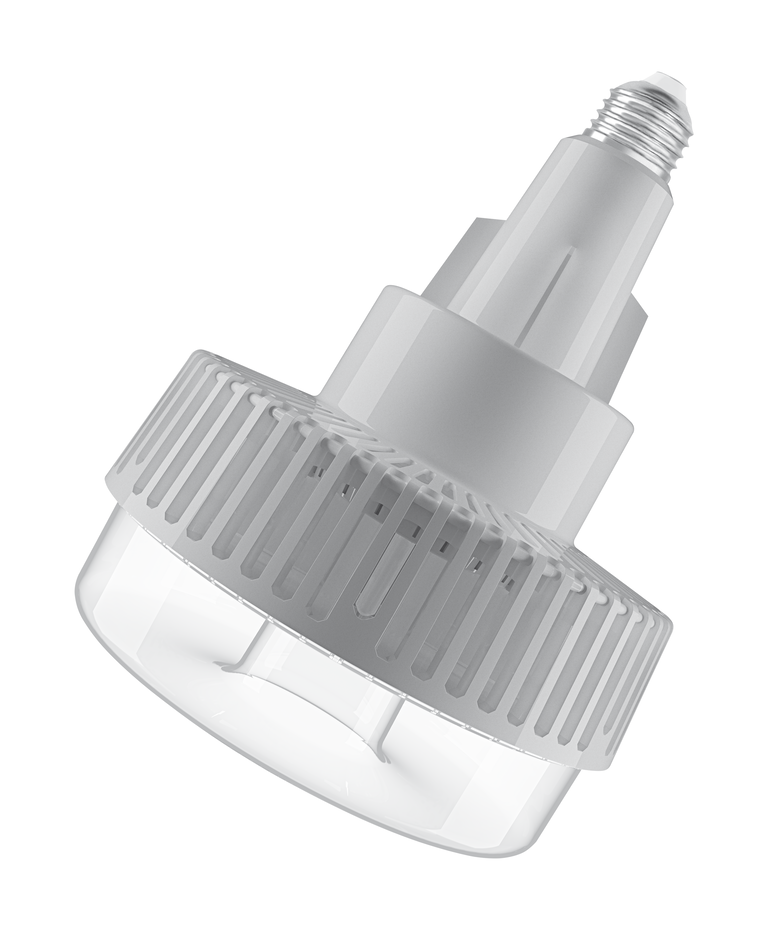

Product image: white background, diagonal
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 TIF (45.31 MB)

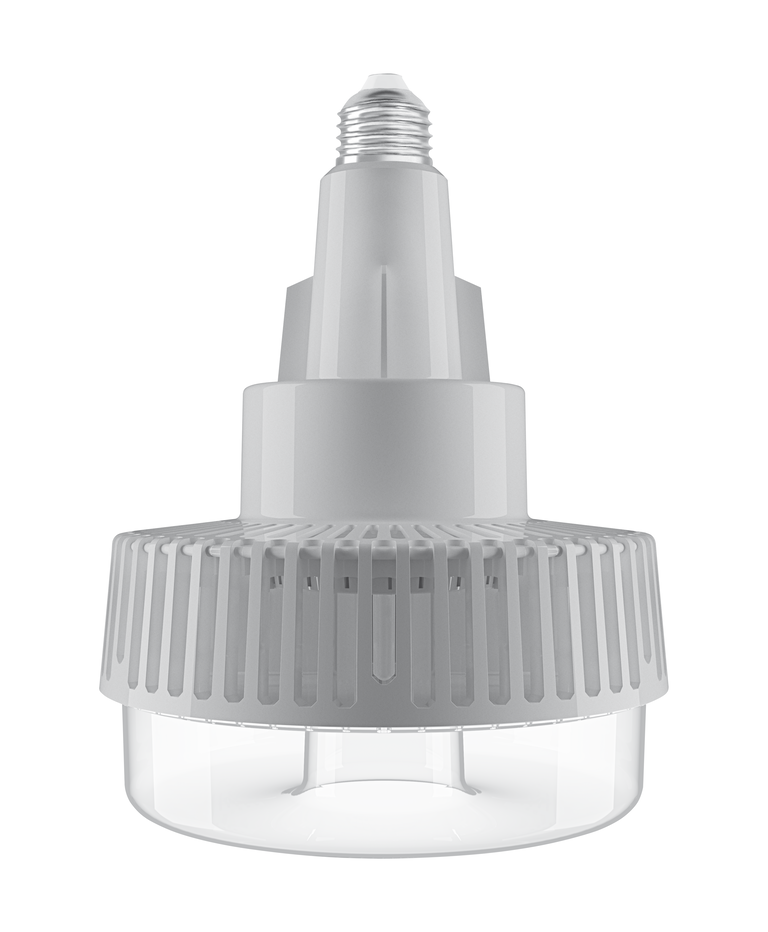

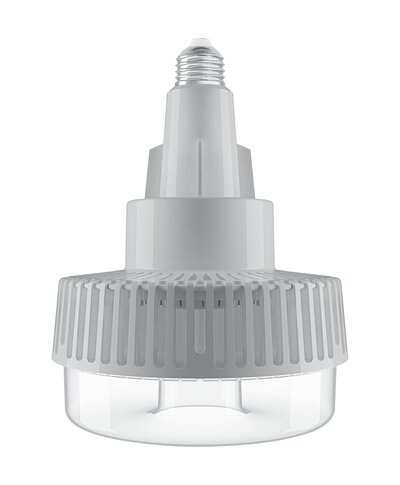

Product image: white background, upright
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 TIF (45.31 MB)
Product line drawing with letters
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 SVG (40.55 KB)
IES file (IES)
HQL HIGHBAY 120° 140 W /6500K E40 IES (14.43 KB)
