PARATHOM DIM LED PIN G9

Choose your product version

32 3.5 W/2700 K G9

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
P DIM PIN 32 3.5 W/2700 K G9 G9 3.5 W 220…240 V 25000 h 350 lm 32 W 300 ° Yes


P DIM PIN 32 3.5 W/2700 K G9

Product benefits
  • Good all-around light emission
  • Very long lifetime of up to 25,000 h
  • Ideal for decorative and free-burning applications
  • Five year guarantee
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 3.5 W
Construction wattage 3.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 32 W
Nominal current 16 mA
Type of current AC
Inrush current 0.016 A
Operating frequency 50 Hz
Mains frequency 50 Hz
Power factor λ 0.90

Photometrical data

Luminous flux 350 lm
Nominal useful luminous flux 90° 350 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 58.00 mm
Diameter 20,0 mm
Maximum diameter 20 mm
Product weight 10.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 88 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G9
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class A++ 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, CB, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

ILCOS DRT/C-3,5/827-220-240-G9-20/58
Order reference LEDPPIN32D CL 3

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G9
Length 58.00 mm
Height 20,0 mm
Width 20,0 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Good all-around light emission
  • Very long lifetime of up to 25,000 h
  • Ideal for decorative and free-burning applications
  • Five year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • LED alternative to high voltage halogen lamps
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075811553 Folding box
1		 37 mm x 140 mm x 120 mm 15.00 g 0.62 dm³
4058075811560 Shipping box
20		 150 mm x 122 mm x 77 mm 301.00 g 1.41 dm³
4058075042520 Shipping box
120		 256 mm x 160 mm x 248 mm 2151.00 g 10.16 dm³
Declarations of conformity

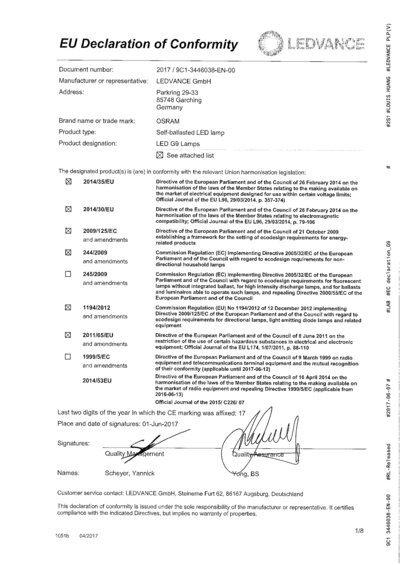

EC declaration G9 20, G9 30, G9 40, G9 32DIM PDF (599.63 KB)

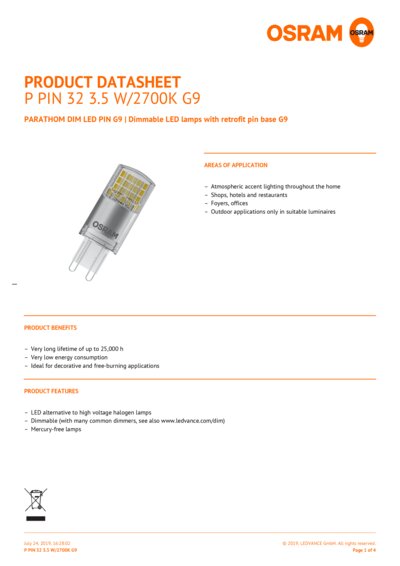

PRODUCT DATASHEET
P PIN 32 3.5 W 2700K G 9 DATASHEET PDF (234.38 KB)

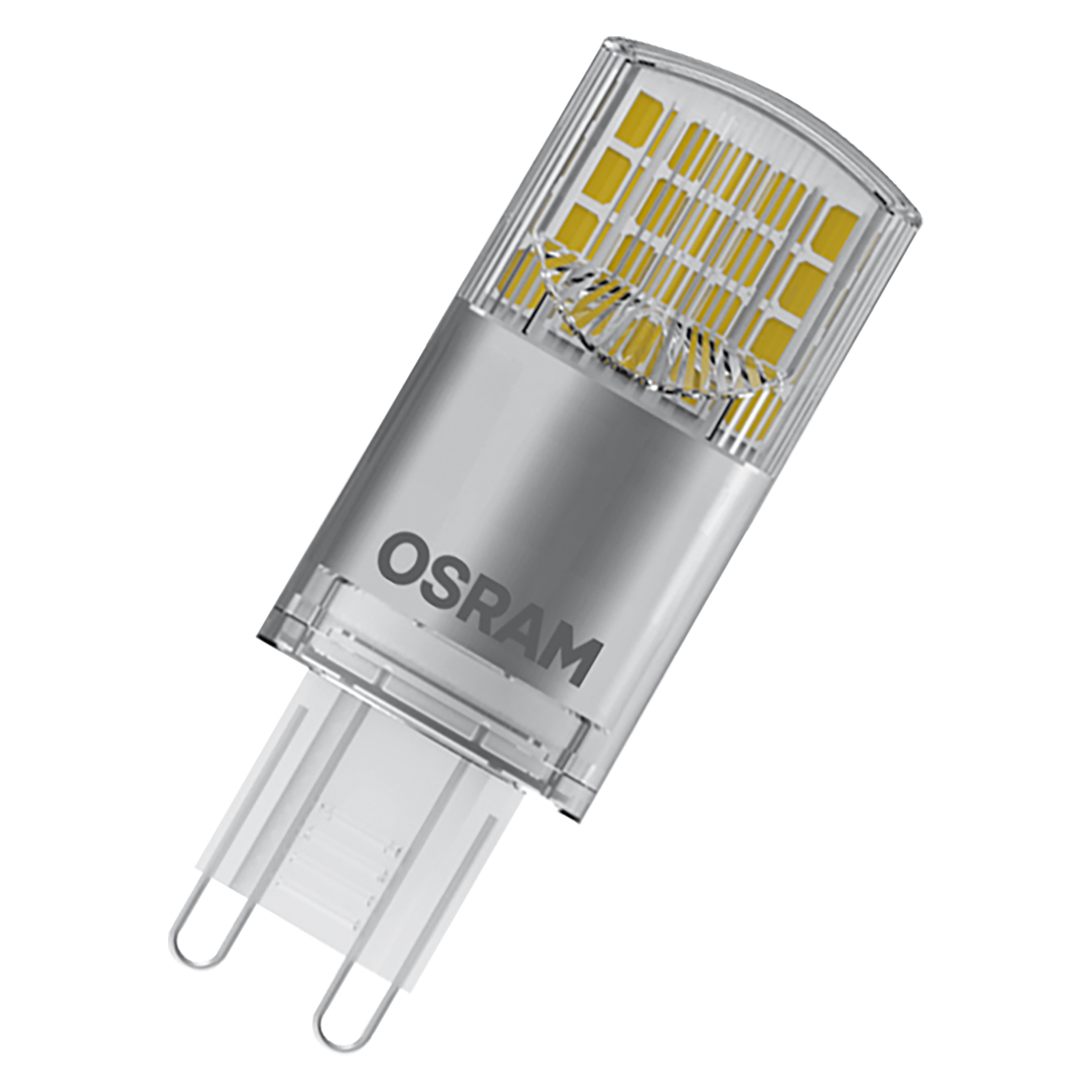

Product image: white background, diagonal with OSRAM logo
LED PIN 40 32 DIM G9 C L TIF (1.28 MB)
Product image: white background, diagonal
LED PIN 40 32 DIM G9 C L TIF (1.27 MB)

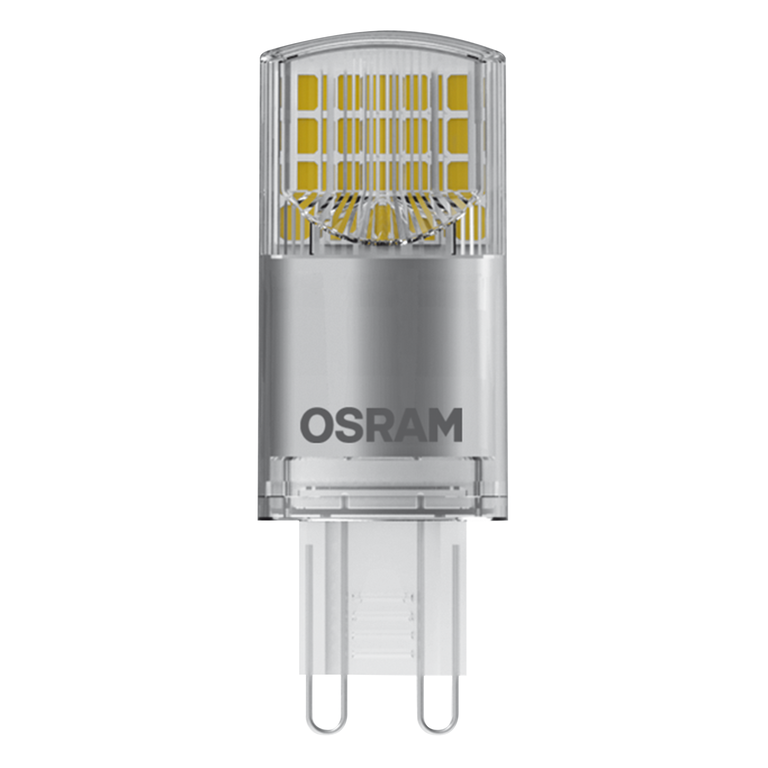

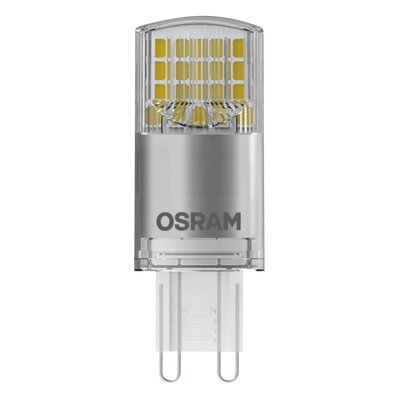

Product image: white background, upright, OSRAM logo
LED PIN 40 + 32 DIM G9 clear TIF (26.18 MB)

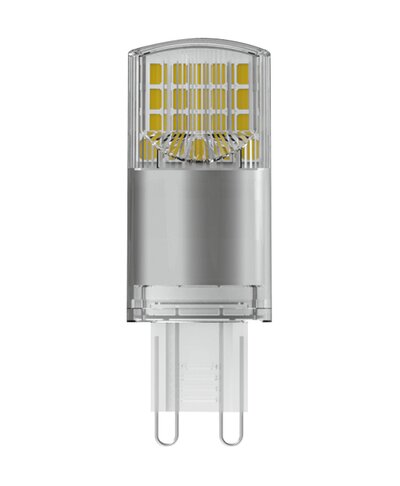

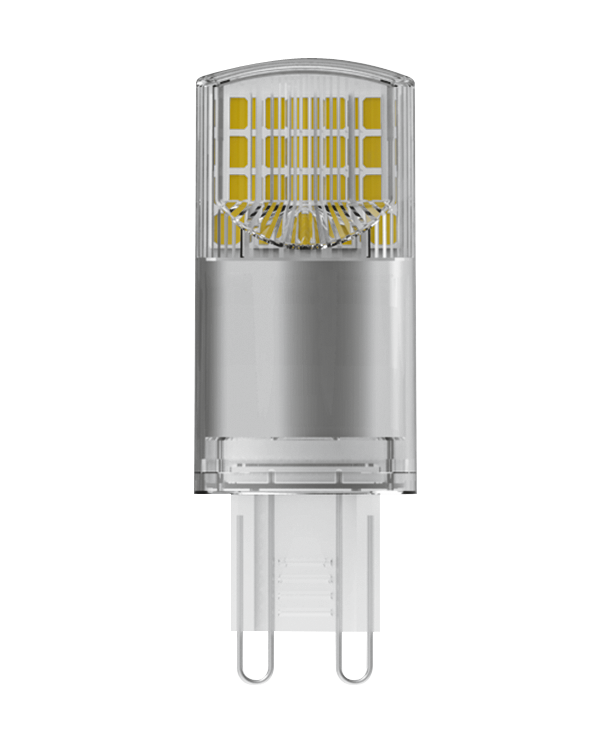

Product image: white background, upright
LED PIN 40 + 32 DIM G9 clear TIF (1.39 MB)

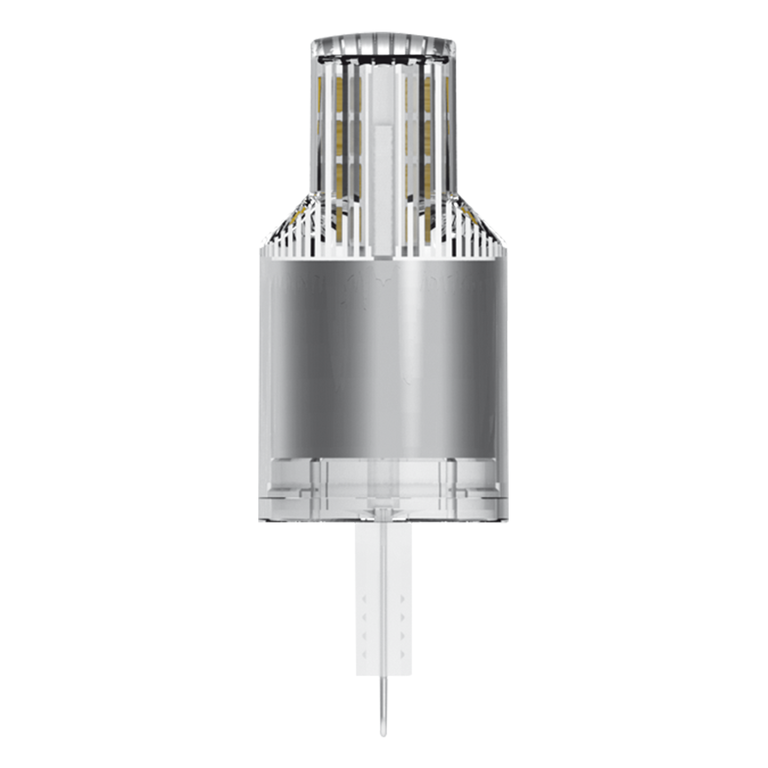

Product image: white background, upright, alternative image
LED PIN 40 + 32 DIM G9 clear TIF (26.18 MB)
Product line drawing with letters
LED PIN 40 + 32 DIM G9 clear SVG (7.58 KB)

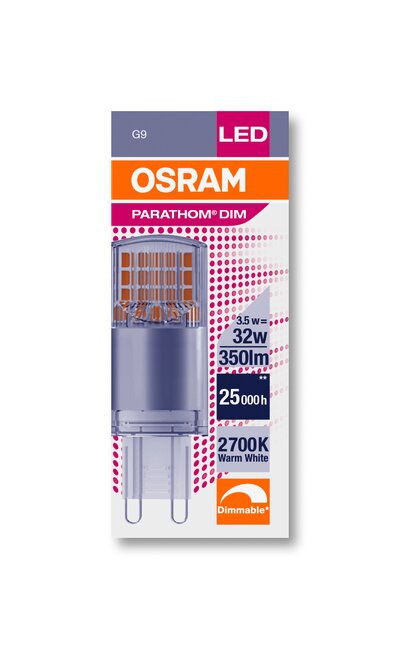

Packaging image, frontal
PARA DIM PIN 32 3.5W 8 27 CL G9 MiCh Front TIF (2.54 MB)

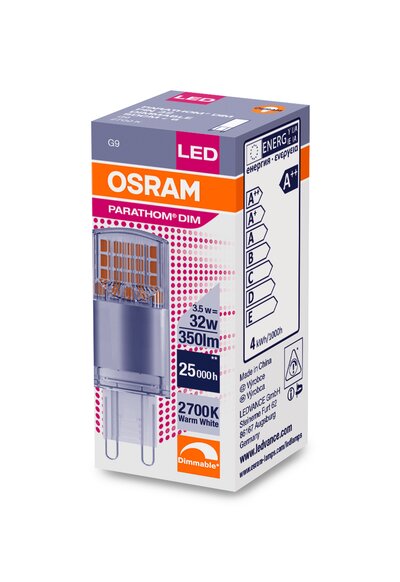

Packaging image, spacial
PARA DIM PIN 32 3.5W 8 27 CL G9 MiCh Side TIF (3.45 MB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
EAN SEG number STK number EFO number ELDAS number
4058075811553 8293102 4730952 3760182 941159770
