Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
HQL LED 5400 lm 37 W/2700 K E27	E27	37 W	100…240 V	50000 h	5400 lm	125 W	280 °	No
HQL LED 5400 lm 37 W/2700 K E40	E40	37 W	100…240 V	50000 h	5400 lm	125 W	280 °	No
HQL LED 6000 lm 37 W/4000 K E27	E27	37 W	100…240 V	50000 h	6000 lm	125 W	280 °	No
HQL LED 6000 lm 37 W/4000 K E40	E40	37 W	100…240 V	50000 h	6000 lm	125 W	280 °	No
HQL LED 12000 lm 70 W/4000 K E40	E40	70 W	100…240 V	50000 h	12000 lm	250 W	280 °	No

HQL LED 5400 lm 37 W/2700 K E27

Product benefits

Saves up to 72 % energy when used as replacement for mercury vapor lamps (HQL)
Low maintenance costs thanks to long lifetime
Instant 100 % light, no warm-up time

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	37 W
Construction wattage	37.00 W
Nominal voltage	100…240 V
Operating mode	AC Mains, Conventional control gear (CCG)
Claimed equiv. conventional lamp power	125 W
Nominal current	400 mA
Type of current	AC
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Total harmonic distortion	< 20 %
Power factor λ	0.90

Photometrical data

Luminous flux	5400 lm
Nominal useful luminous flux 90°	5400 lm
Luminous efficacy	145 lm/W
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	≥80
Light color	827

Light technical data

Beam angle	280 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	195.00 mm
Diameter	80.00 mm
Maximum diameter	80 mm
Product weight	680.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Lifespan

Number of switching cycles

100000

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg

Capabilities

Dimmable

Certificates & Standards

Type of protection	IP65
Standards	CB
Photobiological safety group acc. to EN62778	RG1

Country-specific categorizations

Order reference

HQLLED 37W/827

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	E27
Length	195.00 mm
Height	80.00 mm
Width	80.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Saves up to 72 % energy when used as replacement for mercury vapor lamps (HQL)
Low maintenance costs thanks to long lifetime
Instant 100 % light, no warm-up time

Areas of application

Streets
Area lighting
Pedestrian zones
Parks
Outdoor applications only in suitable luminaires

Product features

Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 100-240V mains
Replacement for other HID: Suitable for operation with line voltage without control gear
Power factor: 0.9
Type of protection: IP65
High surge protection: up to 4 kV (L-N)

Safety advice

The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. If possible, please install the safety rope included in the package containing the lamp for the types 37W E40 and 70W E40.
Not suitable for operation with ignitors.
Operation on the capacitor can lead to a reduction of the power factor of the system.
When installed horizontally, the t_c point of the lamp is located on the top side of the lamp.
Use in tight luminaires and luminaires with tight reflectors not recommended.

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075724648	Folding box 1	87 mm x 87 mm x 231 mm	753.00 g	1.75 dm³
4058075724655	Shipping box 6	270 mm x 185 mm x 256 mm	4807.00 g	12.79 dm³

Product images and graphics

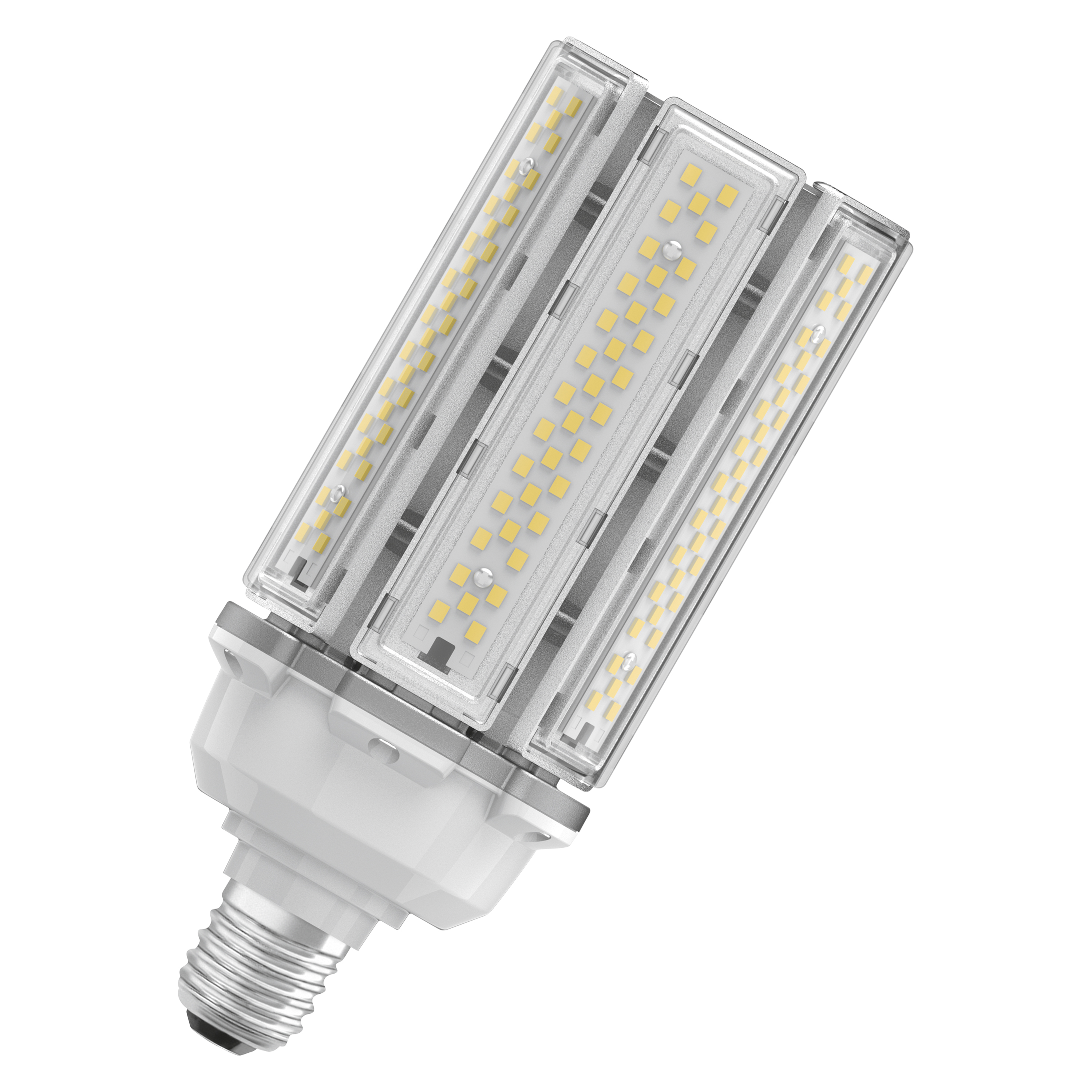

Product image: white background, diagonal
HQL LED 6000 46W E27 JPG (2.01 MB)

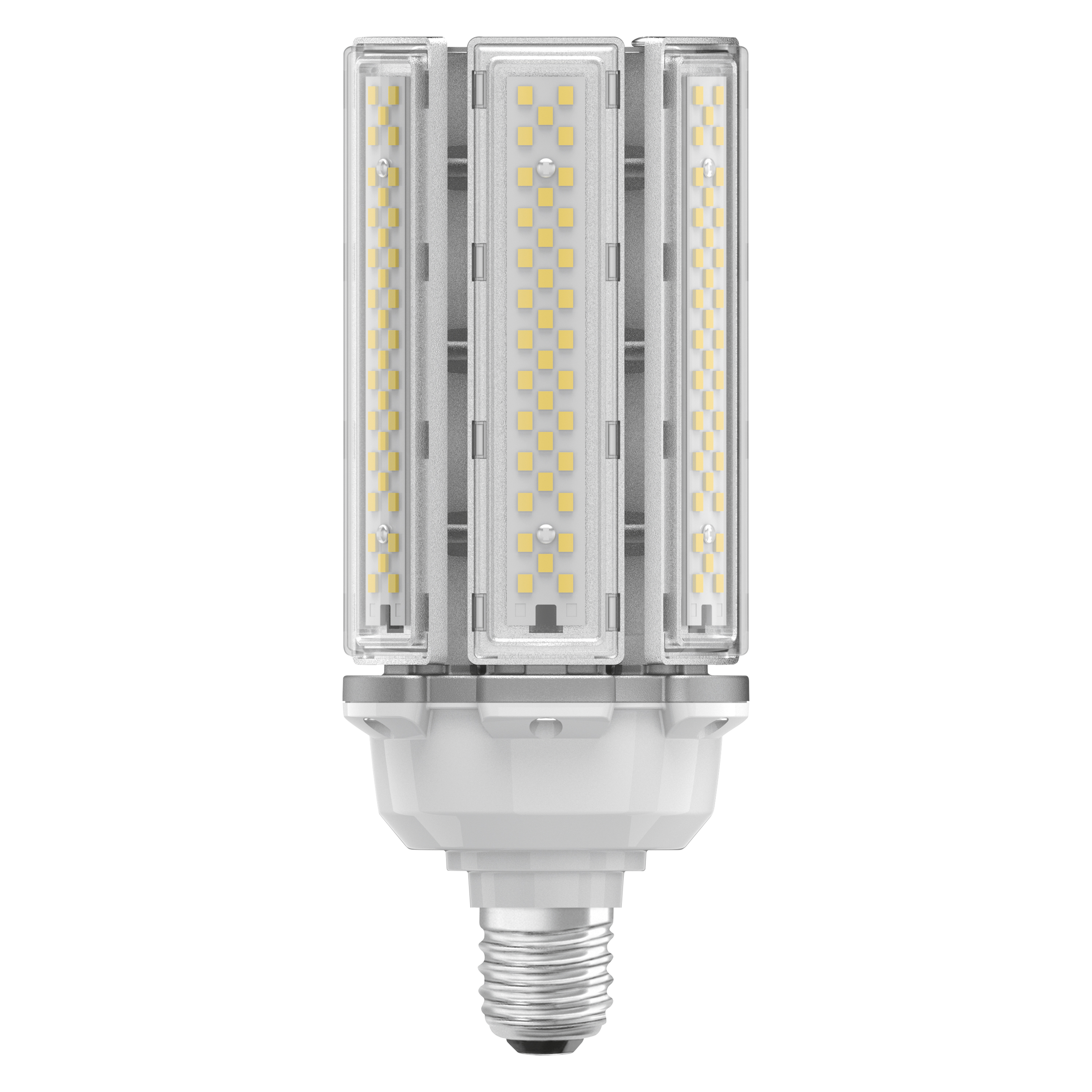

Product image: white background, upright
HQL LED 6000 46W E27 JPG (1.82 MB)

Product line drawing with letters
HQL LED 6000 46W E27 SVG (54.63 KB)

Product line drawing, front, no dimensions
HQL LED 6000 46W E27 SVG (51.27 KB)

HQL LED HE

5400 lm 37 W/2700 K E27

5400 lm 37 W/2700 K E40

6000 lm 37 W/4000 K E27

6000 lm 37 W/4000 K E40

12000 lm 70 W/4000 K E40
