Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Beam angle
DULUX L LED 18 W/5700 K 2G11	2G11	18 W	220…240 V	30000 h	2300 lm	150 °
DULUX L LED 18 W/4000 K 2G11	2G11	18 W	220…240 V	30000 h	2350 lm	150 °
DULUX L LED 25 W/5700 K 2G11	2G11	25 W	220…240 V	30000 h	3400 lm	150 °	No
DULUX L LED 25 W/4000 K 2G11	2G11	25 W	220…240 V	30000 h	3570 lm	150 °	No

DULUX L LED 25 W/4000 K 2G11

Product benefits

Quick and simple LED conversion without modification of the existing installtion
Complies with IEC 60901 standard of product dimension
Low operation cost thanks to long lifetime and high luminous efficacy
Instant-on light, therefore ideally suitable in combination with sensor technology

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	25 W
Construction wattage	25.00 W
Nominal voltage	220…240 V
Operating mode	Electronic control gear (ECG), AC
Nominal current	150 mA
Type of current	AC
Operating frequency	60 Hz
Mains frequency	60 Hz
Power factor λ	> 0.50

Photometrical data

Luminous flux	3570 lm
Luminous efficacy	142 lm/W
Light color (designation)	Cool White
Color temperature	4000 K
Color rendering index Ra	80
Light color	840

Light technical data

Beam angle

150 °

Dimensions & Weight

Overall length	535.00 mm
Diameter	17.50 mm
Product weight	160.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+45 °C

Additional product data

Base (standard designation)

2G11

Capabilities

Dimmable

Country-specific categorizations

Order reference

DUXLED 25W/840

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	2G11
Length	535.00 mm
Height	17.50 mm
Width	17.50 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Quick and simple LED conversion without modification of the existing installtion
Complies with IEC 60901 standard of product dimension
Low operation cost thanks to long lifetime and high luminous efficacy
Instant-on light, therefore ideally suitable in combination with sensor technology

Areas of application

Domestic applications
Hotels, hospitality

Product features

Lifetime up to 30,000 h
Luminous efficacy: up to 127 lm/W
Mercury-free and RoHS compliant
Uniform illumination
Color rendering index R_a: ≥ 80
Direct replacement for compact fluorescent lamps with 2G11 base
Bright, robust and durable
Tube made of glass or plastic

Equipment / Accessories

For operation on electronic control gear

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075174764	Folding box 1	460 mm x 46 mm x 26 mm	168.00 g	0.55 dm³
4099854145872	Shipping box 30	561 mm x 249 mm x 178 mm	7018.00 g	24.86 dm³

Product images and graphics

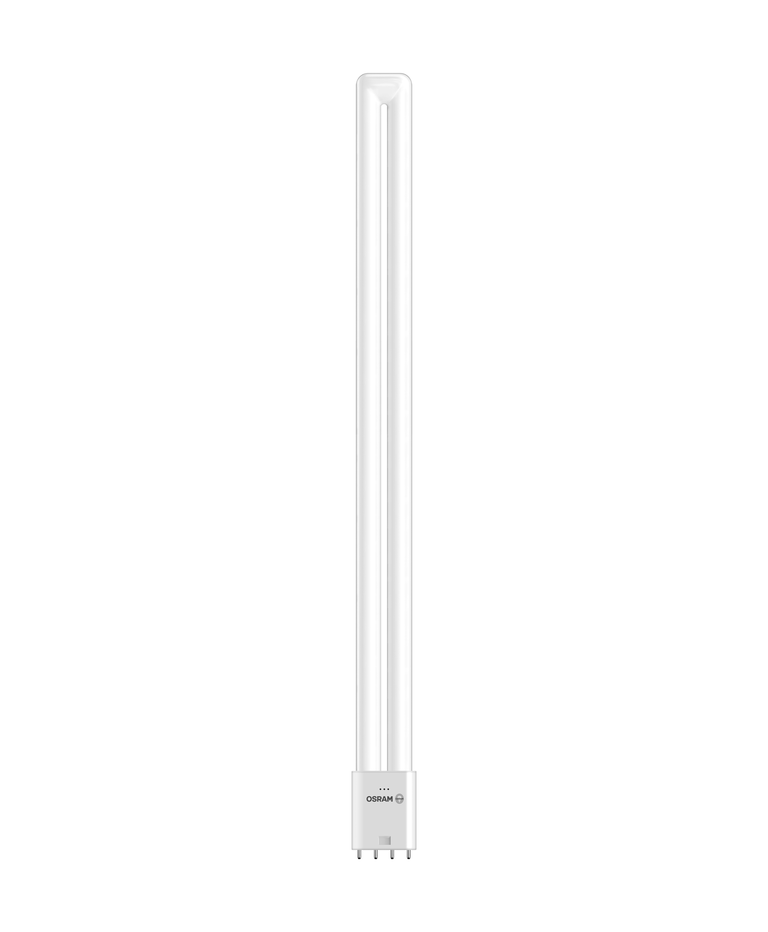

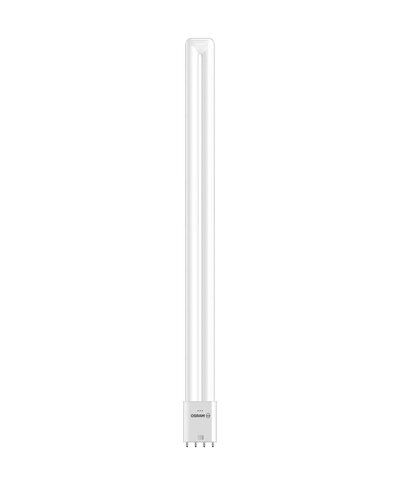

Product image: white background, upright, OSRAM logo
DULUX L LED 25W 2G11 TIF (2.73 MB)

Product line drawing with letters
DULUX L LED 2G11 SVG (12.18 KB)

Product line drawing, front, no dimensions
DULUX L LED 18W 2G11 SVG (3.92 KB)

OSRAM DULUX L LED

18 W/5700 K 2G11

18 W/4000 K 2G11

25 W/5700 K 2G11

25 W/4000 K 2G11
