Choose your product version
| Product description |
|---|

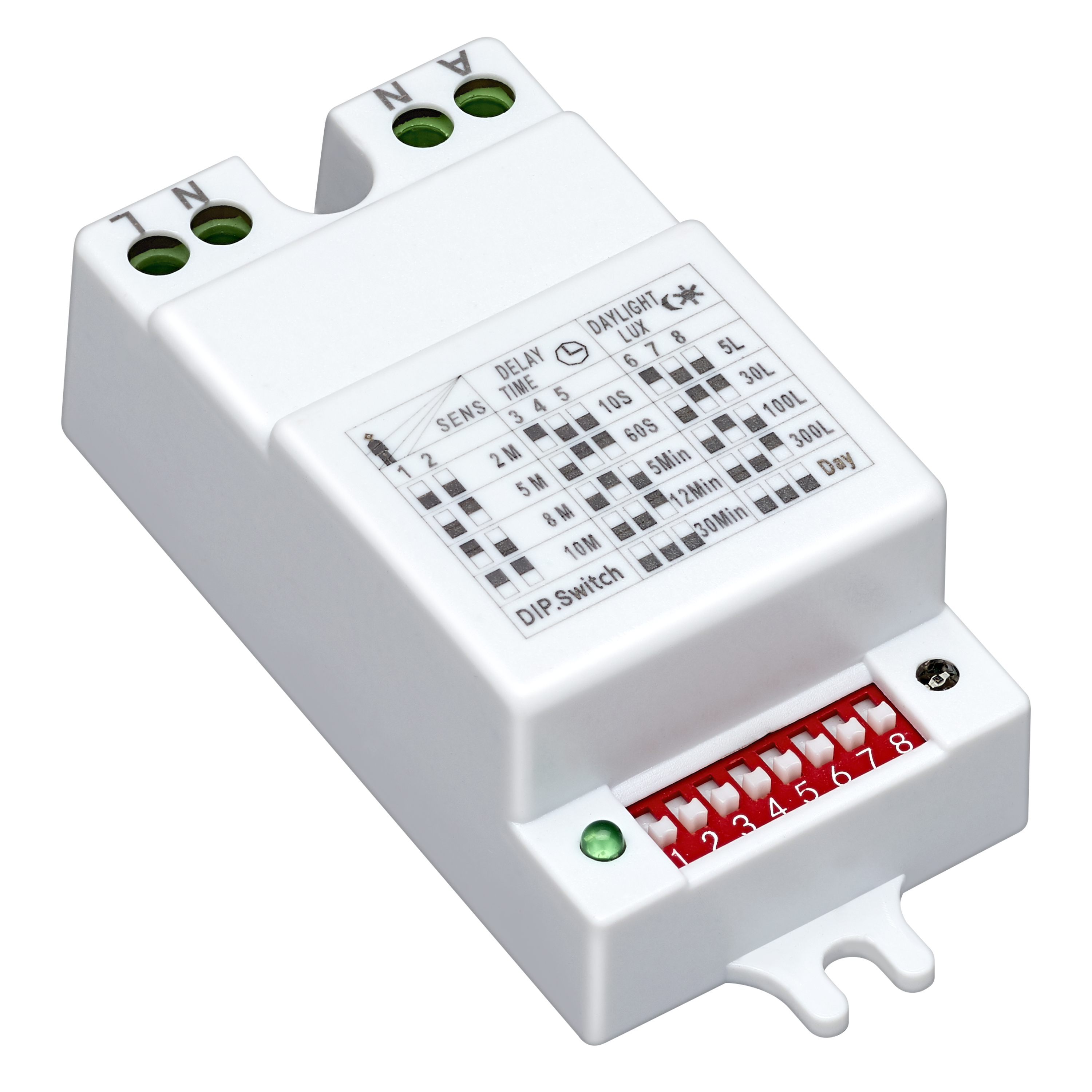

| MS-SV MIC-IL 360 220-240 V IP20 |
| Nominal voltage | 220…240 V |
| Type of current | AC |
| Mains frequency | 50…60 Hz |
| Surge capability (L-N) | 1 kV |
| Length | 68.00 mm |
| Width | 36.00 mm |
| Height | 25.00 mm |
| Product weight | 45.3 g |
| Product color | White |
| Ambient temperature range | -35…+50 °C |
| Dimmable | No |
| Maximum installation height | 1.5…4 m |
| Detection area | 10 m 1) |
| Detection angle | 180 °, 360 ° |
1) Maximum diameter
| Protection class | II |
| Type of protection | IP20 |
| Temperature range at storage | -35…+55 °C |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075373136 | Folding box 1 |
53 mm x 39 mm x 82 mm | 54.00 g | 0.17 dm³ |
| 4058075373143 | Shipping box 10 |
207 mm x 118 mm x 102 mm | 647.00 g | 2.49 dm³ |
| EAN | AU model number |
|---|---|
| 4058075373136 | LDVSENSORMICIL360 |
