OVERVIEW

Product description	Nominal wattage	Number of switching cycles	Beam angle	Luminous flux	Dimmable
LDPFM DP 600 8W 830 S G4	8.00 W	25000	120 °	1120 lm	No
LDPFM DP 600 8W 840 S G4	8.00 W	25000	120 °	1200 lm	No
LDPFM DP 600 8W 865 S G4	8.00 W	25000	120 °	1200 lm	No
LDPFM DP 1200 14W 830 S G4	14.00 W	25000	120 °	1960 lm	No
LDPFM DP 1200 14W 840 S G4	14.00 W	25000	120 °	2100 lm	No
LDPFM DP 1200 14W 865 S G4	14.00 W	25000	120 °	2100 lm	No
LDPFM DP 600 16W 830 S G4	16.00 W	25000	120 °	2240 lm	No
LDPFM DP 600 16W 840 S G4	16.00 W	25000	120 °	2400 lm	No
LDPFM DP 600 16W 865 S G4	16.00 W	25000	120 °	2400 lm	No
LDPFM DP 1500 21W 830 S G4	21.00 W	120 °	2940 lm	No
LDPFM DP 1500 21W 840 S G4	21.00 W	120 °	3150 lm	No
LDPFM DP 1500 21W 865 S G4	21.00 W	120 °	3150 lm	No
LDPFM DP 1200 30W 830 S G4	30.00 W	25000	120 °	4200 lm	No
LDPFM DP 1200 30W 840 S G4	30.00 W	25000	120 °	4500 lm	No
LDPFM DP 1200 30W 865 S G4	30.00 W	120 °	4500 lm	No
LDPFM DP 1500 43W 830 S G4	43.00 W	120 °	6020 lm	No
LDPFM DP 1500 43W 840 S G4	43.00 W	120 °	6450 lm	No
LDPFM DP 1500 43W 865 S G4	43.00 W	120 °	6450 lm	No
LDPFM DP 1500 57W 830 S G4	57.00 W	120 °	7980 lm	No
LDPFM DP 1500 57W 840 S G4	57.00 W	120 °	8550 lm	No
LDPFM DP 1500 57W 865 S G4	57.00 W	120 °	8550 lm	No

LDPFM DP 600 8W 830 S G4

Product benefits

UV-stabilized polycarbonate opal diffuser ensures uniform light distribution and long-lasting durability
Polycarbonate body and diffuser offers IK08 impact protection
Sleek and lightweight slim body design, compact but powerful
Long 50,000 hours lifetime reduces maintenance costs
Sensor design with more energy saving

View all details

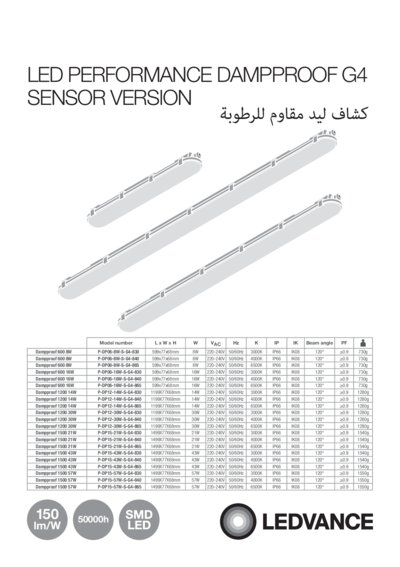

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	8.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	39.000 mA
Inrush current	6 A
Max. number of luminaires per miniature circuit breaker B16	17
Max. number of luminaires per miniature circuit breaker C10	14
Max. number of luminaires per miniature circuit breaker C16	23
Power factor λ	0.90
Total harmonic distortion	≤ 15 %
Protection class	I
Surge capability (L/N-Ground)	2 kV
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	1120 lm
Luminous efficacy	140 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	> 80
Standard deviation of color matching	< 5 sdcm
Flickering metric (Pst LM)	≤ 1
Stroboscope effect metric (SVM)	≤ 0.4
Photobiological safety group acc. to EN62778	RG0
Beam angle	120 °

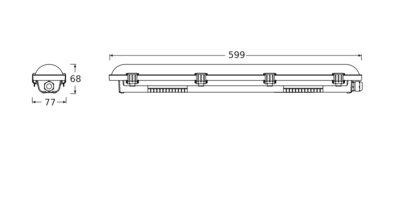

Dimensions & Weight

Length	599.00 mm
Height	68.00 mm
Width	77.00 mm
Product weight	730.00 g

Materials & Colors

Product color	Gray
Housing color	Gray
Body material	Plastic
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+50 °C
Temperature range at storage	-20…+80 °C
Type of connection	Terminal, 5-pin
Type of protection	IP66
Protection class IK (shock resistance)	IK08
Dimmable	No
Mounting type	Surface/Suspended
Application environment	Indoor
With light source	Yes
Replaceable light source	No

Lifespan

Lifespan L70/B50 at 25 °C	50000 h ¹⁾
Number of switching cycles	25000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta)

Control gear

Output current

55 mA

Sensor

Type of sensor	Motion, Light
Sensor detection angle	‹ 140 °
Sensor controlled switching time	30 s…60 s
Detection range of motion sensor	0.5…5 m
Detection threshold of daylight sensor	25 lx

Certificates & Standards

Replaceable light source (EPREL)

Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

UV-stabilized polycarbonate opal diffuser ensures uniform light distribution and long-lasting durability
Polycarbonate body and diffuser offers IK08 impact protection
Sleek and lightweight slim body design, compact but powerful
Long 50,000 hours lifetime reduces maintenance costs
Sensor design with more energy saving

Areas of application

Industrial and storage facilities
Car parks and underpasses
Garages
Workshops, assembly lines
Warehouses
Humid and dirty application areas

Product features

Available in 7 wattages and lumen packages
Available in 3 length options, ensuring direct replacement of traditional 2-4-5 feet fluorescent dampproof fixtures
Input voltage: 220…240 V
Operating frequency: 50/60 Hz
High system lumen efficacy: up to 150 lm/W
Color rendering index R_a: > 80
High frequency sensor for daylight and motion detection
Anti-corrosion stainless steel clips
Type of protection: IP66
Impact resistance: IK08
Class I Luminaires
CB, EMC, RED, RoHS certified

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854360176	Folding box 1	72 mm x 82 mm x 605 mm	748.00 g	3.57 dm³
4099854360183	Shipping box 10	621 mm x 181 mm x 395 mm	7983.00 g	44.40 dm³
