DOWNLIGHT ALU EMERGENCY

Choose your product version

DN150 14 W 3000 K AT 3H WT

DN150 14 W 4000 K AT 3H WT

DN150 14 W 6500 K AT 3H WT

DN200 25 W 3000 K AT 3H WT

DN200 25 W 6500 K AT 3H WT

DN200 35 W 3000 K AT 3H WT

DN200 35 W 4000 K AT 3H WT

DN200 35 W 6500 K AT 3H WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DL ALU EM DN150 14 W 3000 K AT 3H WT 14.00 W 100000 100 ° 1190 lm No
DL ALU EM DN150 14 W 4000 K AT 3H WT 14.00 W 100000 100 ° 1260 lm No
DL ALU EM DN150 14 W 6500 K AT 3H WT 14.00 W 100000 100 ° 1330 lm No
DL ALU EM DN200 25 W 3000 K AT 3H WT 25.00 W 100000 100 ° 2250 lm No
DL ALU EM DN200 25 W 6500 K AT 3H WT 25.00 W 100000 100 ° 2370 lm No
DL ALU EM DN200 35 W 3000 K AT 3H WT 35.00 W 100000 100 ° 2975 lm No
DL ALU EM DN200 35 W 4000 K AT 3H WT 35.00 W 100000 100 ° 3150 lm No
DL ALU EM DN200 35 W 6500 K AT 3H WT 35.00 W 100000 100 ° 3150 lm No


DL ALU EM DN200 35 W 4000 K AT 3H WT

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • Energy savings of up to 60 % compared to luminaires that use CFL
  • Very homogenous light
  • Functional design
  • Easy installation with fast connection
  • 3 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 35.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 125 mA
Inrush current 9 A
Inrush current time Th50 100 µs
Max. number of luminaires per miniature circuit breaker B16 37
Max. number of luminaires per miniature circuit breaker C10 31
Max. number of luminaires per miniature circuit breaker C16 50
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 3150 lm
Luminous efficacy 90 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching ≤6 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 100 °

Dimensions & Weight

Diameter 215.00 mm
Height 61.00 mm
Product weight 950.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range +5…+40 °C
Temperature range at storage 5…+35 °C
Type of connection Screw terminal, 2-POLE (N, L. L switchable)
Type of protection IP44/IP20
Protection class IK (shock resistance) IK02
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 200 mm
Mounting depth 120 mm
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 45000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Length 138 mm
ECG - Width 45 mm
ECG - Height 28 mm

BATTERY

Type of Battery LiFePO4
Battery size [GMS] Others
Nominal voltage of battery 3.2 V
Nominal capacity of battery 4500 mAh
Battery charging time < 24 h

Emergency lighting

Area of emergency application Anti-panic lighting, Escape route lighting
Type of emergency light operation Maintained, Non-maintained
Type of emergency operation test Automatic
Wattage in maintained operation mode 35.0 W
Wattage in emergency operation mode 3,0 W
Luminous flux in maintained operation mode 3150 lm
Luminous flux in emergency operation mode 400 lm
Battery life in emergency operation mode 3 h
Integrated test switch No

Certificates & Standards

Standards CE, CB, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Number of illuminants Not relevant

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • Energy savings of up to 60 % compared to luminaires that use CFL
  • Very homogenous light
  • Functional design
  • Easy installation with fast connection
  • 3 years guarantee
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Direct replacement for luminaires with compact fluorescent lamps
  • General illumination
  • Public areas
  • Corridors, stairways, entrance areas
  • Shops
Product features
  • Luminaire suitable for normal lighting and emergency lighting
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Diameter of required ceiling cut-out: 150 mm or 200 mm (depending on version)
  • Type of protection: IP44
Equipment / Accessories
  • Control LED with a retainer for recessed installation included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075204348 Folding box
1		 322 mm x 222 mm x 114 mm 1115.00 g 8.15 dm³
4058075204355 Shipping box
8		 658 mm x 466 mm x 263 mm 6875.00 g 80.64 dm³
User instruction / safety instructions
UI_Downlight_Alu_Emerg ency PDF (3.62 MB)
Declarations of conformity
EC declaration of EM d ownlight PDF (806.69 KB)
Certificates
EC declaration of EM d ownlight PDF (806.68 KB)
Product image: white background, diagonal
DL ALU DN200 TIF (1.65 MB)
Product image: white background, horizontal
DL ALU DN200 TIF (3.38 MB)
Product line drawing with letters
DL ALU DN200 SVG (28.42 KB)
Product line drawing with letters
DOWNLIGHT ALU DN200 SVG (28.42 KB)
Product line drawing with numbers
DOWNLIGHT ALU DN200 SVG (36.48 KB)
Product line drawing with numbers
DL ALU DN200 SVG (36.48 KB)
Product line drawing, front, no dimensions
DL ALU DN200 SVG (22.89 KB)
Product line drawing - technical
DOWNLIGHT ALU DN200 SVG (22.89 KB)
IES file (IES)
DL ALU DN200 35W 4000K WT EM AT 3H IES (1.87 KB)
LDT file (Eulumdat)
DL ALU DN200 35W 4000K WT EM AT 3H LDT (2.1 KB)
ULD file (DIALux)
DL ALU DN200 35W-4000K WT ULD (613.89 KB)
ROLF file (RELUX)
DL ALU DN200 35W-4000K ROLF (363.62 KB)

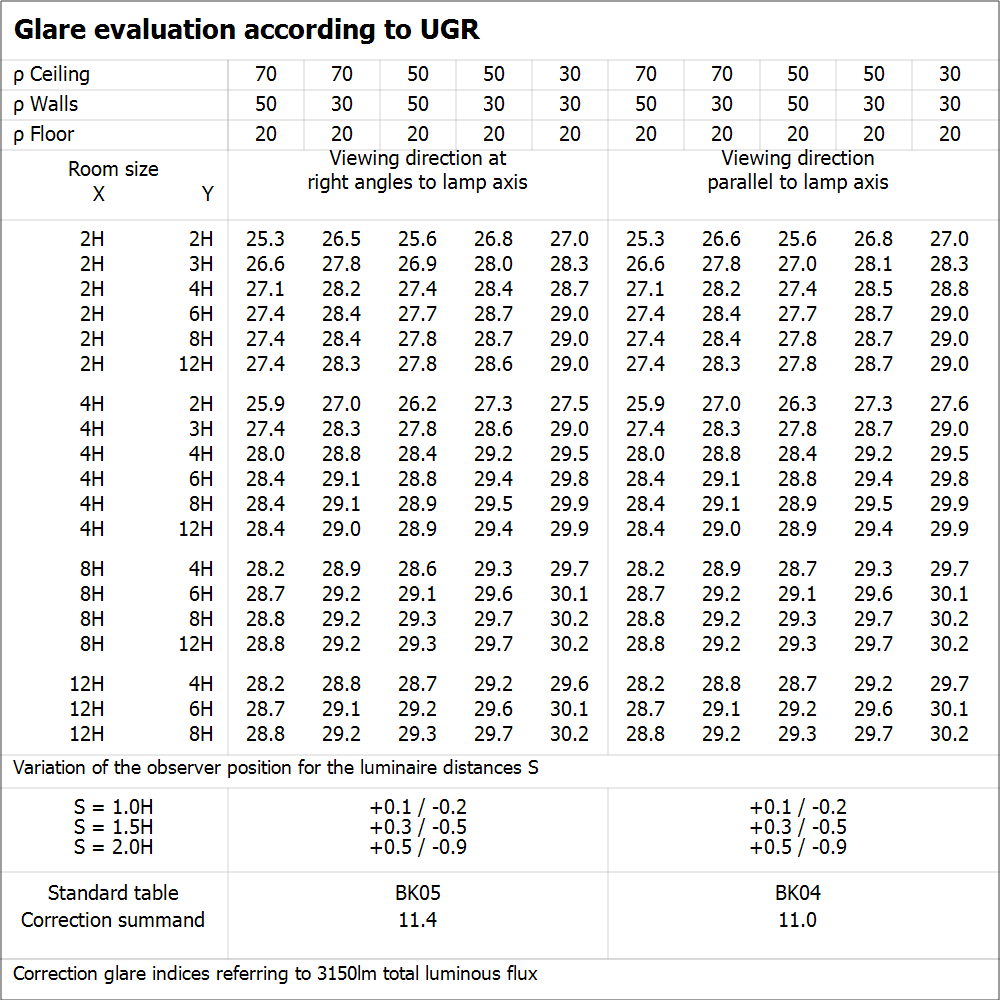

UGR file (UGR table)
DL ALU DN200 35W 4000K WT EM AT 3H PNG (57.23 KB)
Light distribution curve type cone
DL ALU DN200 35W 4000K WT EM AT 3H SVG (11.42 KB)
Light distribution curve type polar
DL ALU DN200 35W 4000K WT EM AT 3H SVG (17.23 KB)
BIM Revit 3D
Downlight ALU ZIP (2.59 MB)
CAD STEP 3D
DL ALU 25W 35W STEP (1.63 MB)
Application pictures
Tirol Kliniken 2019 17 JPG (15.1 MB)
Application pictures
Tirol Kliniken 2019 27 JPG (14.84 MB)
Application pictures
Tirol Kliniken 2019 6 JPG (16.29 MB)
Application pictures
Tirol Kliniken 2019 28 JPG (8.18 MB)
Application pictures
Tirol Kliniken 2019 29 JPG (16.51 MB)
Application pictures
Tirol Kliniken 2019 22 JPG (13.56 MB)
Application pictures
Tirol Kliniken 2019 16 JPG (17.28 MB)
Application pictures
Tirol Kliniken 2019 25 JPG (14.42 MB)
Application pictures
Tirol Kliniken 2019 8 JPG (16.58 MB)
Application pictures
Tirol Kliniken 2019 23 JPG (22.54 MB)
Application pictures
Tirol Kliniken 2019 21 JPG (16.67 MB)
Application pictures
Tirol Kliniken 2019 19 JPG (16.83 MB)
Application pictures
Tirol Kliniken 2019 20 JPG (15.88 MB)
Application pictures
Tirol Kliniken 2019 7 JPG (18.2 MB)
Application pictures
Tirol Kliniken 2019 18 JPG (14.26 MB)
Application pictures
Tirol Kliniken 2019 24 JPG (15.63 MB)
Application pictures
Tirol Kliniken 2019 26 JPG (15.05 MB)
