FLOODLIGHT FLEX DALI ASYMMETRIC 45 X 140

Choose your product version

40W 830 A45X140 WAL

40W 840 A45X140 WAL

80W 822 A45X140 WAL

80W 830 A45X140 WAL

80W 840 A45X140 WAL

130W 830 A45X140 WAL

130W 840 A45X140 WAL

180W 830 A45X140 WAL

180W 840 A45X140 WAL

250W 830 A45X140 WAL

250W 840 A45X140 WAL

360W 830 A45X140 WAL

360W 840 A45X140 WAL

450W 830 A45X140 WAL

450W 840 A45X140 WAL

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
FL FLEX DA P 40W 830 A45X140 WAL 40.00 W 100000 45 ° x 140 ° 5800 lm Yes
FL FLEX DA P 40W 840 A45X140 WAL 40.00 W 100000 45 ° x 140 ° 6100 lm Yes
FL FLEX DA P 80W 822 A45X140 WAL 80.00 W 100000 45 ° x 140 ° 8300 lm Yes
FL FLEX DA P 80W 830 A45X140 WAL 80.00 W 100000 45 ° x 140 ° 11400 lm Yes
FL FLEX DA P 80W 840 A45X140 WAL 80.00 W 100000 45 ° x 140 ° 12000 lm Yes
FL FLEX DA P 130W 830 A45X140 WAL 130.00 W 100000 45 ° x 140 ° 19000 lm Yes
FL FLEX DA P 130W 840 A45X140 WAL 130.00 W 100000 45 ° x 140 ° 19800 lm Yes
FL FLEX DA P 180W 830 A45X140 WAL 180.00 W 100000 45 ° x 140 ° 25500 lm Yes
FL FLEX DA P 180W 840 A45X140 WAL 180.00 W 100000 45 ° x 140 ° 27500 lm Yes
FL FLEX DA P 250W 830 A45X140 WAL 250.00 W 100000 45 ° x 140 ° 37000 lm Yes
FL FLEX DA P 250W 840 A45X140 WAL 250.00 W 100000 45 ° x 140 ° 39000 lm Yes
FL FLEX DA P 360W 830 A45X140 WAL 360.00 W 100000 45 ° x 140 ° 52000 lm Yes
FL FLEX DA P 360W 840 A45X140 WAL 360.00 W 100000 45 ° x 140 ° 56000 lm Yes
FL FLEX DA P 450W 830 A45X140 WAL 450.00 W 100000 45 ° x 140 ° 65000 lm Yes
FL FLEX DA P 450W 840 A45X140 WAL 450.00 W 100000 45 ° x 140 ° 70000 lm Yes


FL FLEX DA P 40W 830 A45X140 WAL

Product benefits
  • Corrosion resistance C5: tested in environments with high salinity
  • Serviceable luminaire: LED driver can be replaced
  • Flexible application due to a range of different lumen packages and beam angles
  • 3 cable entries for flexible use and easy connection between luminaires
  • Integrated breather for preventing condensation inside the luminaire
  • Energy savings of up to 91 % compared to halogen lamp floodlights
  • Energy savings of up to 51 % compared to luminaires that use conventional discharge lamps
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Intelligent design of the water drain to prevent standing water
  • Simple angle adjustment by locking every 2.5°
  • Clear angular degree indication
  • Key hole to ensure ease of installation
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 40.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 196.000 mA
Inrush current 74.4 A
Inrush current time Th50 224 µs
Max. number of luminaires per miniature circuit breaker B16 8
Max. number of luminaires per miniature circuit breaker C10 8
Max. number of luminaires per miniature circuit breaker C16 14
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Surge capability (L-N) 6 kV
Surge capability (L/N-Ground) 10 kV
Operating mode Integrated LED driver

Photometrical data

Luminous flux 5800 lm
Luminous efficacy 145 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 45 ° x 140 °

Dimensions & Weight

Length 406.00 mm
Height 67.00 mm
Width 277.00 mm
Product weight 3800.00 g

Materials & Colors

Product color White aluminum
Housing color White aluminum
RAL Color (most similar) RAL 9017
Body material Aluminum
Cover material Glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -30…+80 °C
Type of connection Screwless terminal
Type of protection IP66
Protection class IK (shock resistance) IK08
Corrosion resistance class acc. to EN 12944 C5
Dimmable Yes
Type of dimming DALI D4i
IoT ready Support of DALI data type PART 251, 252, 253 1)
Mounting type Surface
Mounting location Wall, Pole, Floor, Ceiling
Application environment Outdoor
Adjustable Yes
With light source Yes
Replaceable light source No

1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

Lifespan

Lifespan L70/B50 at 25 °C 120000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 2100 mA
ECG - Output ripple current < 10 %

Certificates & Standards

Standards CE, CB, ENEC, UKCA, EPD
Luminaire with limited surface temperature, "D sign" Yes
EPD LEDV-00046-V01.01-EN

Additional product data

Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), Alkanes / Chloroalkanes C10-13 (85535-84-8)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Corrosion resistance C5: tested in environments with high salinity
  • Serviceable luminaire: LED driver can be replaced
  • Flexible application due to a range of different lumen packages and beam angles
  • 3 cable entries for flexible use and easy connection between luminaires
  • Integrated breather for preventing condensation inside the luminaire
  • Energy savings of up to 91 % compared to halogen lamp floodlights
  • Energy savings of up to 51 % compared to luminaires that use conventional discharge lamps
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Intelligent design of the water drain to prevent standing water
  • Simple angle adjustment by locking every 2.5°
  • Clear angular degree indication
  • Key hole to ensure ease of installation
Areas of application
  • Coastal areas, like ports
  • General outdoor area lighting
  • Parking
  • Suitable for indoor and outdoor sports facilities
  • Architectural lighting
  • Industry
  • Direct replacement for luminaires using HID lamps
Product features
  • Corrosion resistance C5 based on 1,500 hours salt mist spray test
  • High luminous efficacy: up to 156 lm/W
  • DALI D4i drivers for smart city applications
  • Daisy chaining possible
  • High surge protection: up to 10 kV (L/N-PE), 6 kV (L-N)
  • High lifetime (L70/B50): up to 120,000 h (at 25 °C)
  • Lumen packages up to 70000 lm
  • Additional 2200 K color temperature version available
Equipment / Accessories
  • Delivery without cables
  • Second cable gland included
  • 2 rubber inserts for 6,5 - 7,5 mm cables included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854373145 Shipping box
1		 482 mm x 322 mm x 114 mm 4805.00 g 17.69 dm³
User instruction / safety instructions
FL FLEX P DALI PDF (7.9 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)
Legal information
LSI FL FLEX DALI PDF (2.4 MB)
Legal information
FL FLEX DA P PDF (874.35 KB)
Declarations of conformity
CE FL FLEX P PDF (213.08 KB)
Certificates
ENEC FL FLEX P PDF (376.93 KB)
EPD
EPD EN FLOODLIGHT FLEX DALI PDF (772.95 KB)
EU Data Act
DALI LED Driver and Lu minaires PDF (469.42 KB)

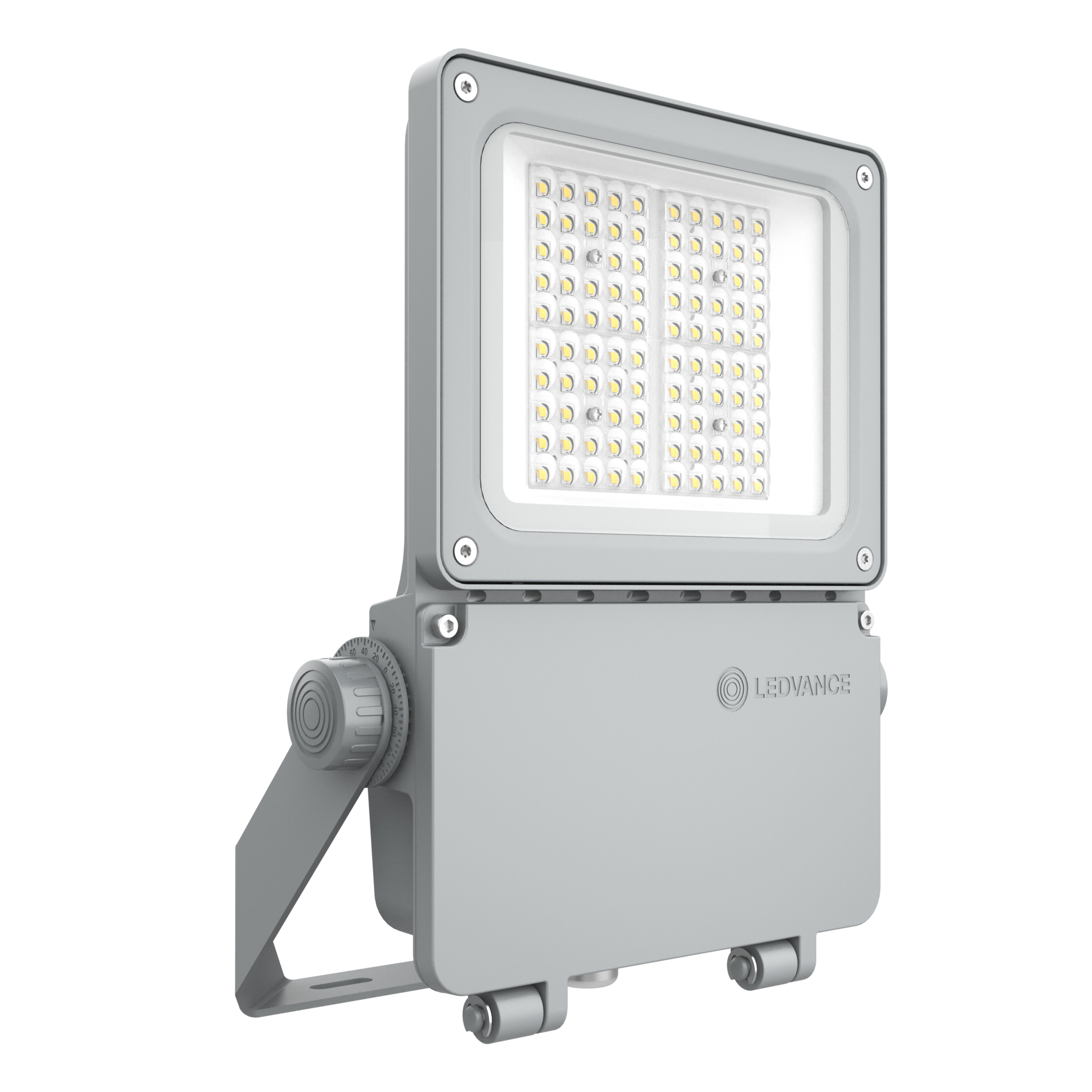

Product image: white background, diagonal
FL FLEX P 40W ML WAL JPG (1.25 MB)

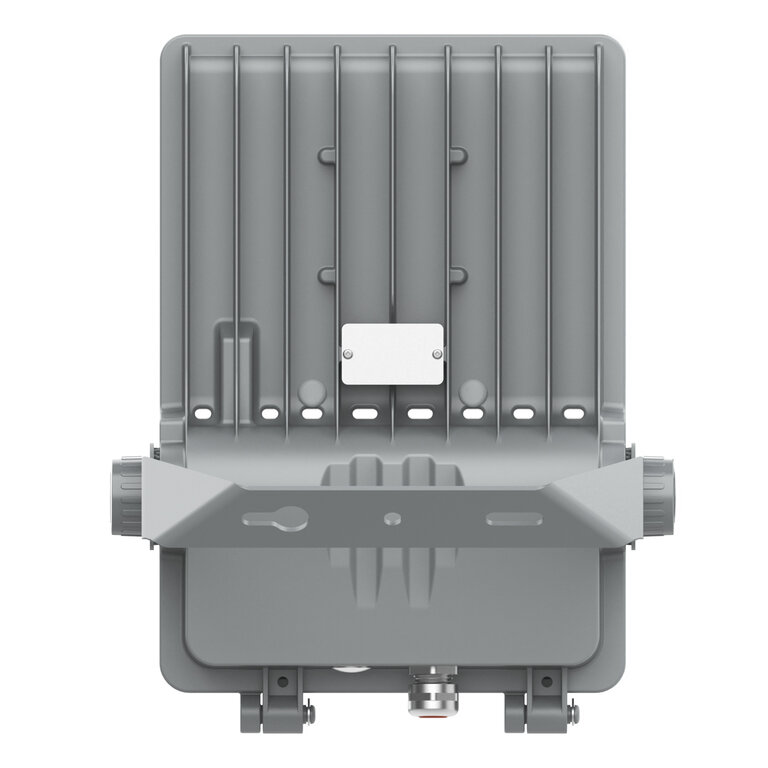

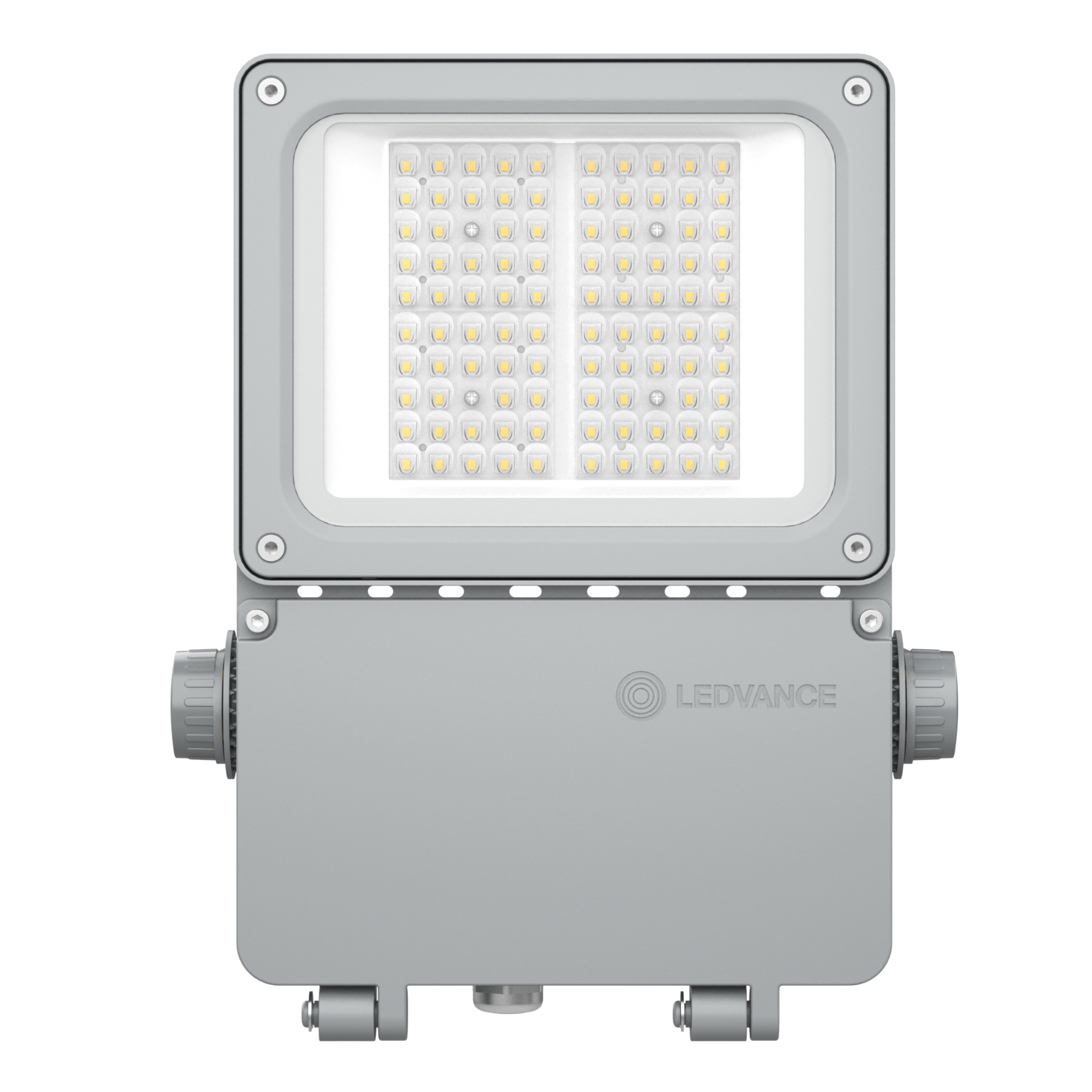

Product image: white background, horizontal
FL FLEX P 40W ML WAL JPG (1.4 MB)

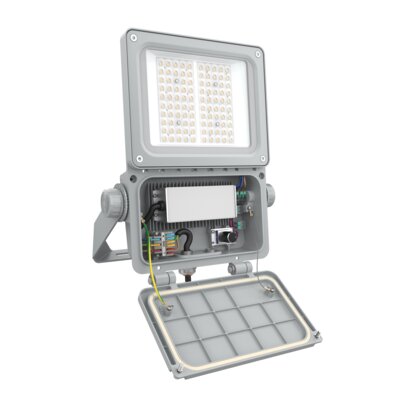

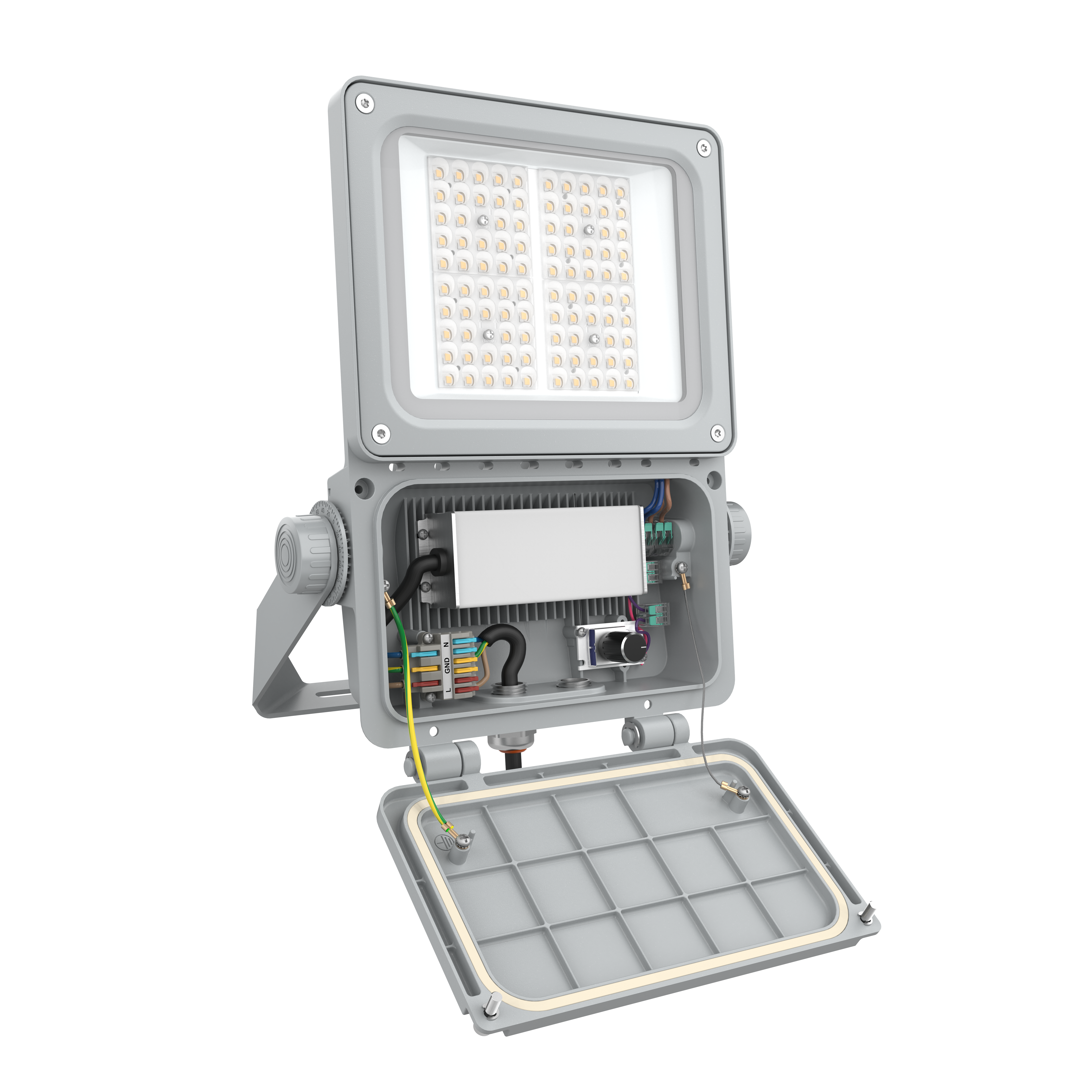

Product image: white background, internal view
Floodlight Flex 40W PNG (14.57 MB)
Product line drawing with letters
FL FLEX P WAL SVG (53.07 KB)
Product line drawing with numbers
FL FLEX P WAL SVG (58.45 KB)
Product line drawing - technical
FL FLEX P WAL SVG (48.75 KB)

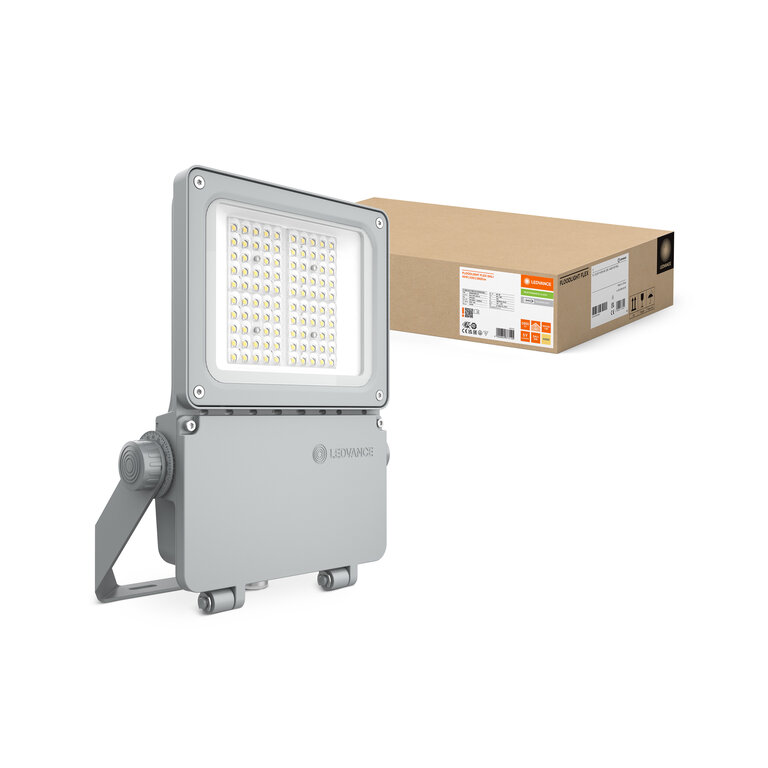

Combo Shot = Product Beauty Shot + Packaging Image
FL FLEX DA P 40W 830 A 45X140 WAL JPG (638.91 KB)
Packaging image, frontal
FL FLEX DA P 40W 830 A 45X140 WAL JPG (583.66 KB)
Packaging image, spacial
FL FLEX DA P 40W 830 A 45X140 WAL JPG (636.2 KB)
IES file (IES)
FL FLEX DA P 40W 830 A 45X140 WAL LEDV_IES IES (72.96 KB)
LDT file (Eulumdat)
FL FLEX DA P 40W 830 A 45X140 WAL LEDV_LDT LDT (49.94 KB)
ULD file (DIALux)
FL FLEX DA P 40W 830 A 45X140 WAL ULD (664.06 KB)
ROLF file (RELUX)
FL FLEX DA P 40W 830 A 45X140 WAL ROLF (833.08 KB)
Light distribution curve type polar
FL FLEX P 40W ML 830 A 45X140 WAL LEDV SVG (17.2 KB)
BIM Revit 3D
Floodlight Flex ZIP (12.67 MB)
CAD STEP 3D
FL FLEX 40W STEP (6.91 MB)
Application pictures Getty
Northern harbour Flood light Flex JPG (6.45 MB)
Application pictures Getty
Southern container por t Floodlight Flex JPG (15.45 MB)
Application pictures Getty
Key Visual Floodlight Flex Launch JPG (10.99 MB)
Application pictures Getty
Parking area Floodligh t Flex JPG (4.79 MB)
EAN SEG number STK number EFO number ELDAS number UK Org
4099854373145 7770434 4532011 3228640 941501270 438157994
