Choose your product version
| Product description | Nominal wattage | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|

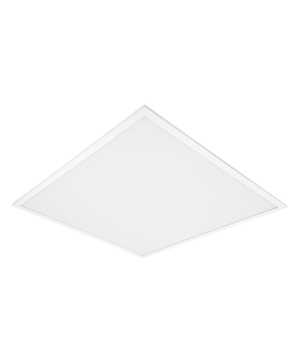

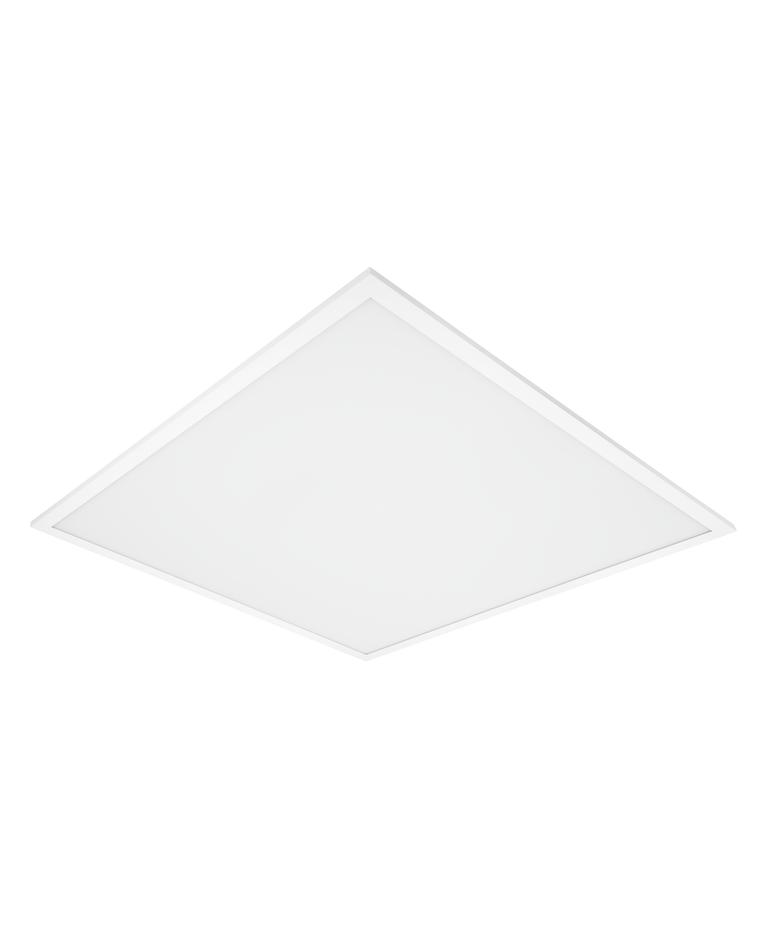

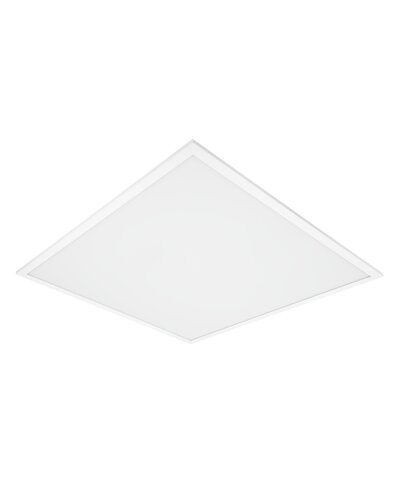

| LED VALUE PANEL 595.00 mm x 595.00 mm 36 W 4000 K | 36.00 W | 120 ° | 3200 lm | No |
| Nominal wattage | 36.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | 0.90 |
| Total harmonic distortion | < 15 % |
| Protection class | II |
| Operating mode | External LED driver |
| Luminous flux | 3200 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 5 sdcm |
| Beam angle | 120 ° |
| Length | 595.00 mm |
| Height | 34.00 mm |
| Width | 595.00 mm |
| Product weight | 2000.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polystyrene (PS) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -10…+45 °C |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed/Suspended/Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Replaceable light source (EPREL) | Not replaceable |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075330634 | Folding box 1 |
600 mm x 38 mm x 645 mm | 2707.00 g | 14.71 dm³ |
| 4058075330641 | Shipping box 5 |
720 mm x 215 mm x 680 mm | 15035.00 g | 105.26 dm³ |
