Choose your product version
| Product description | Nominal wattage | Luminous flux | Dimmable |
|---|---|---|---|
| LED PERFORMANCE PANEL PL0606B 24W 830 WV | 24.00 W | 3600 lm | No |
| LED PERFORMANCE PANEL PL0606B 24W 840 WV | 24.00 W | 3840 lm | No |
| LED PERFORMANCE PANEL PL0606B 24W 865 WV | 24.00 W | 3840 lm | No |
| Nominal wattage | 24.00 W |
| Nominal voltage | 100…277 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 270.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 13 |
| Max. number of luminaires per miniature circuit breaker C10 | 14 |
| Max. number of luminaires per miniature circuit breaker C16 | 22 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | ≤ 15 % |
| Protection class | II |
| Luminous flux | 3600 lm |
| Luminous efficacy | 150 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| UGR | < 22 |

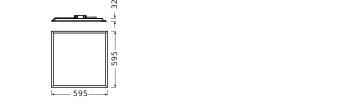

| Length | 595.00 mm |
| Height | 32.00 mm |
| Width | 595.00 mm |
| Product weight | 1430.00 g |
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP54/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting width | 595.00 mm |
| Mounting depth | 32 mm |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CB, ROHS 2.0, EMC, SASO |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Replaceable light source (EPREL) | Not replaceable |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854290589 | Folding box 1 |
641 mm x 38 mm x 603 mm | 1726.00 g | 14.69 dm³ |
| 4099854290596 | Shipping box 6 |
700 mm x 292 mm x 670 mm | 11717.00 g | 136.95 dm³ |
