Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

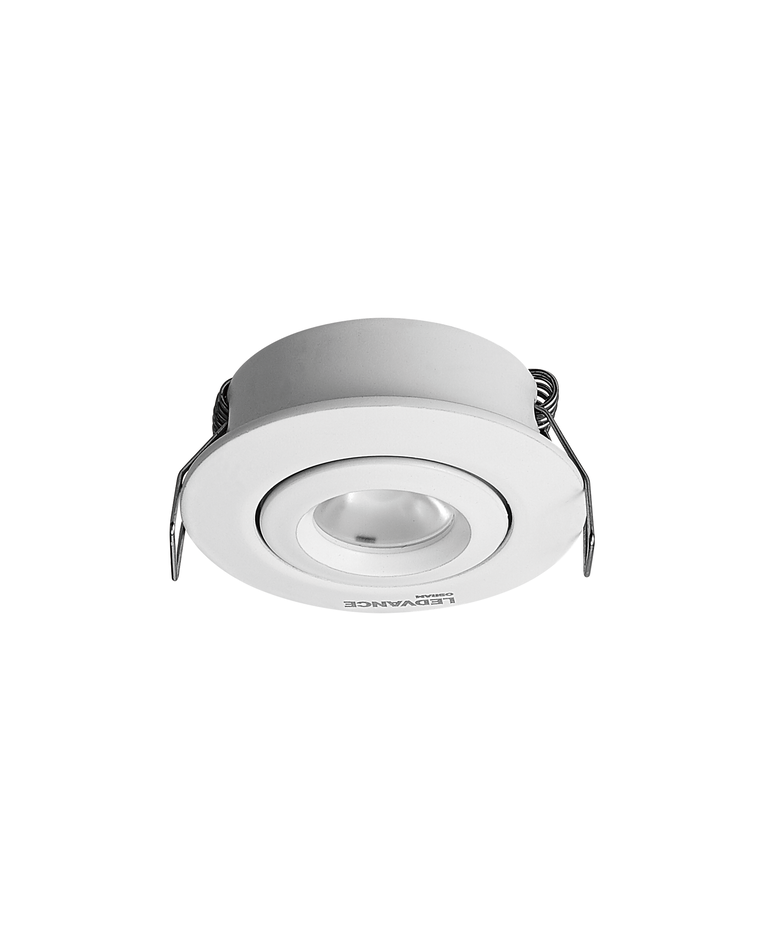

| SPOT LED AD PRO 2 W 3000 K 14 ° ADJ | 2.00 W | 25000 | 14 ° | 95 lm | No |

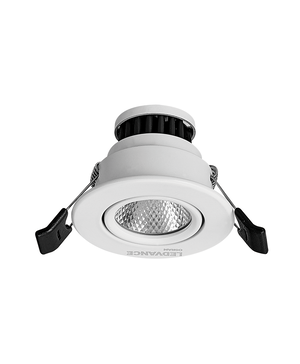

| SPOT LED AD PRO 3 W 3000 K 24 ° ADJ | 3.00 W | 25000 | 24 ° | 215 lm | No |
| SPOT LED AD PRO 5 W 3000 K 24 ° ADJ | 5.00 W | 25000 | 24 ° | 350 lm | No |
| SPOT LED AD PRO 5 W 3000 K 14 ° ADJ | 5.00 W | 25000 | 14 ° | 350 lm | No |

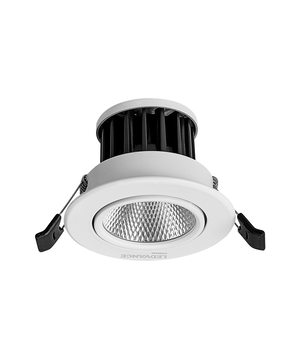

| SPOT LED AD PRO 8 W 3000 K 24 ° ADJ | 8.00 W | 25000 | 24 ° | 550 lm | No |
| SPOT LED AD PRO 8 W 3000 K 14 ° ADJ | 8.00 W | 25000 | 14 ° | 550 lm | No |
| SPOT LED AD PRO 10 W 3000 K 24 ° ADJ | 10.00 W | 25000 | 24 ° | 600 lm | No |
| SPOT LED AD PRO 10 W 3000 K 14 ° ADJ | 10.00 W | 25000 | 14 ° | 600 lm | No |
| SPOT LED AD PRO 10 W 3000 K 36 ° ADJ | 10.00 W | 25000 | 36 ° | 600 lm | No |
| Nominal wattage | 2.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 20 mA |
| Power factor λ | ≥0.5 |
| Protection class | II |
| Luminous flux | 95 lm |
| Luminous efficacy | 50 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 14 ° |
| Diameter | 52.00 mm |
| Height | 30.00 mm |
| Product weight | 87.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -15…+45 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Cable/Connector |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 44…46 mm |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Replaceable light source (EPREL) | Not replaceable |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075247109 | Folding box 1 |
97 mm x 97 mm x 74 mm | 126.00 g | 0.70 dm³ |
| 4058075247116 | Shipping box 36 |
410 mm x 315 mm x 250 mm | 5155.00 g | 32.29 dm³ |
