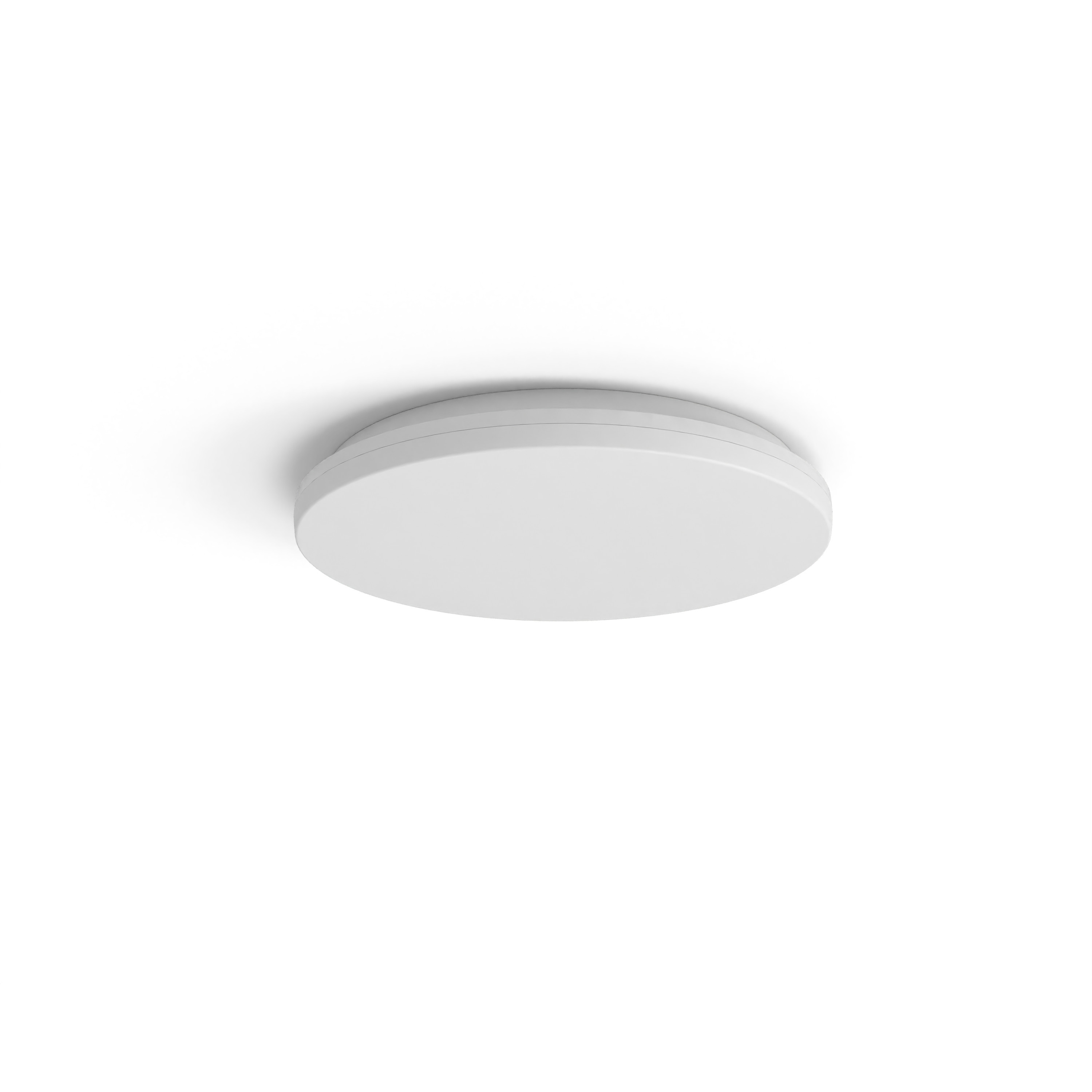

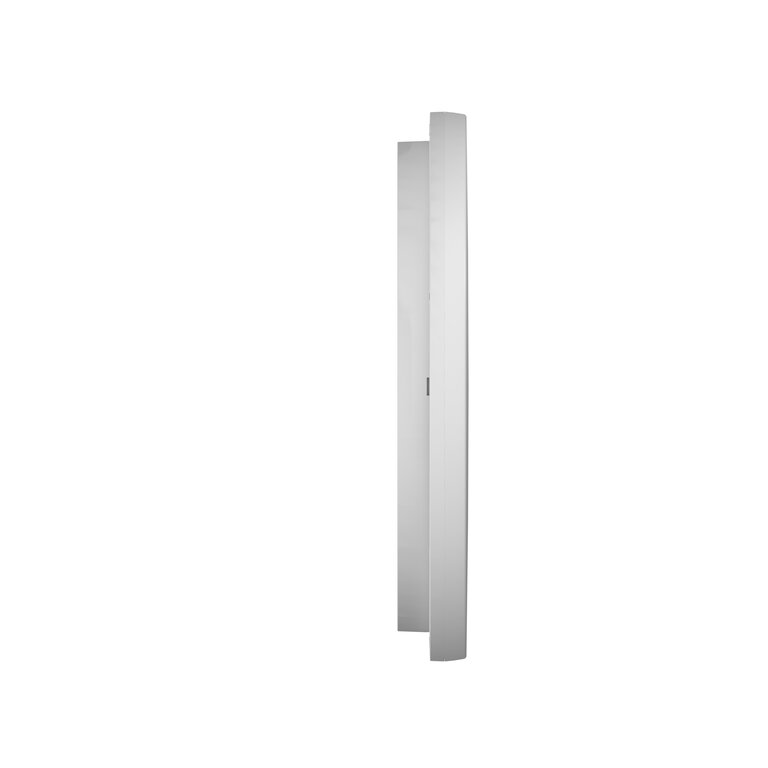

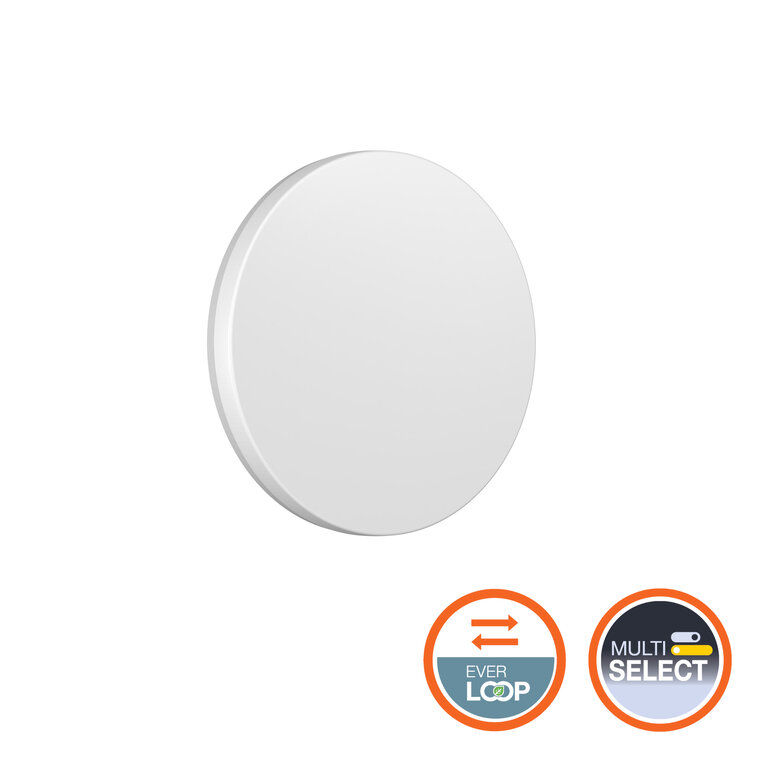

SURFACE FLAT ROUND DALI

Product description	Nominal wattage	Number of switching cycles	Beam angle	Luminous flux	Dimmable
SF FLAT RD DA 500 P 27W 83040	27.00 W	100000	120 °	3780 lm	Yes

Technical data

Electrical data

Nominal wattage	27.00 W ¹⁾
Nominal voltage	220…240 V
Mains frequency	0/50/60 Hz
Nominal current	120.000 mA
Inrush current	17.8 A
Inrush current time T_h50	200 µs
Max. number of luminaires per miniature circuit breaker B16	11
Max. number of luminaires per miniature circuit breaker C10	10
Max. number of luminaires per miniature circuit breaker C16	16
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	II
Operating mode	Integrated LED driver

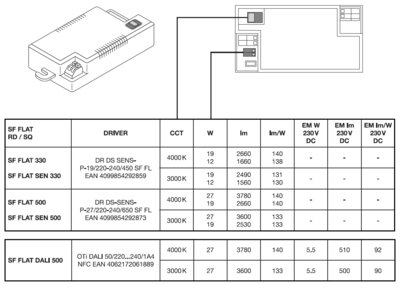

¹⁾ For possible options refer to lumen/power table image

Photometrical data

Luminous flux	3780 lm ¹⁾
Luminous efficacy	140 lm/W ¹⁾
Color temperature	3000 K / 4000 K
Light color (designation)	Warm White, Cool White
Color rendering index Ra	> 80
Standard deviation of color matching	3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	<1
Stroboscope effect metric (SVM)	<0.4
Photobiological safety group acc. to EN62778	RG0
Beam angle	120 °

¹⁾ For possible options refer to lumen/power table image

Dimensions & Weight

Diameter	500.00 mm
Height	71.00 mm
Product weight	3129.00 g

Materials & Colors

Product color	White
Housing color	White
RAL Color (most similar)	RAL 9003
Body material	Polycarbonate (PC)
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	850 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+45 °C
Temperature range at storage	-40…+80 °C

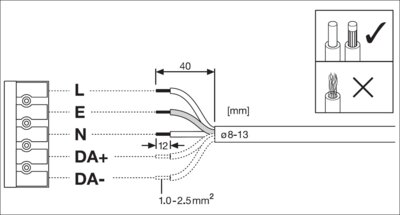

Type of connection	Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection	IP54
Protection class IK (shock resistance)	IK08
Dimmable	Yes
Type of dimming	DALI2
IoT ready	Support of DALI data type PART 251, 252, 253 ¹⁾
Mounting type	Surface
Mounting location	Ceiling, Wall
Application environment	Indoor
With light source	Yes
Replaceable light source	Yes

¹⁾ Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

Lifespan

Lifespan L70/B50 at 25 °C	100000 h ¹⁾
Lifespan L80/B10 at 25 °C	100000 h ¹⁾
Lifespan L90/B10 at 25 °C	50000 h
Number of switching cycles	100000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current	650 mA
ECG - Output ripple current	< 5 %

Emergency lighting

Type of Emergency Lighting (EL)	EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test	None
Wattage in emergency operation mode	5.5 W
Luminous flux in emergency operation mode	510 lm

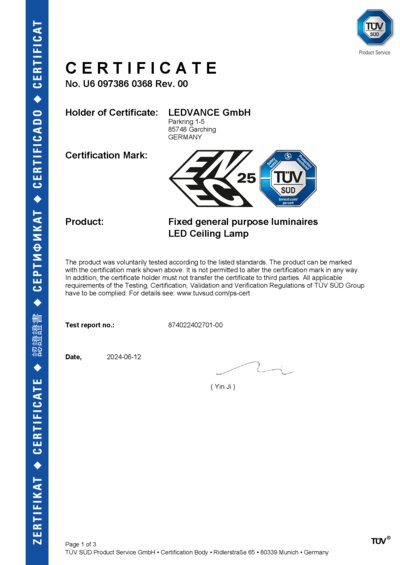

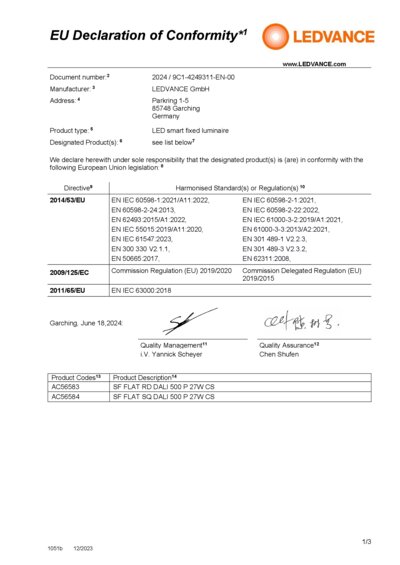

Certificates & Standards

Standards	CE, CB, ENEC, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign"	Yes
Ball shot safe	No

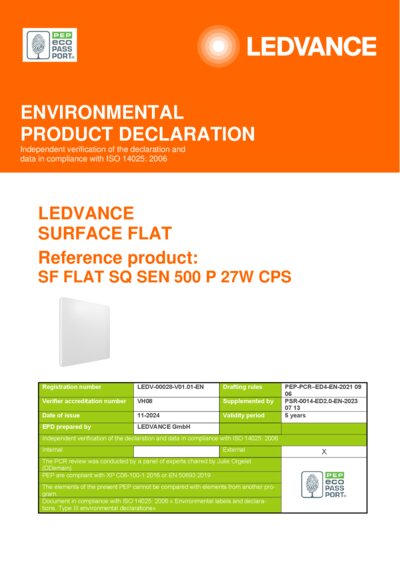

EPD	LEDV-00028-V01.01-EN
Replaceable light source (EPREL)	Not replaceable

Additional product data

Added function

EVERLOOP, MULTI SELECT, VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Easy upgradeability of light source, driver and sensor (EVERLOOP design)
Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
Highly versatile due to selectable CCT (Multi Color) on the driver
Indoor luminaire with high luminous efficacy up to 140 lm/W
High color consistency with SDCM 3
Tool-free electrical connection due to push button connector
Very homogenous light with a slight backlight effect
Extended services such as energy monitoring and remote maintenance possible with DALI versions
5 years guarantee

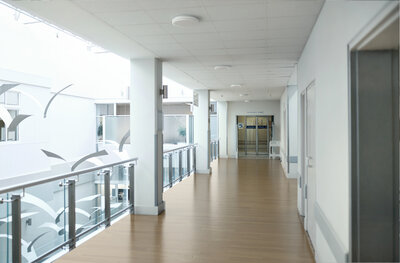

Areas of application

Direct replacement for surface luminaires with integrated CFLni lamps

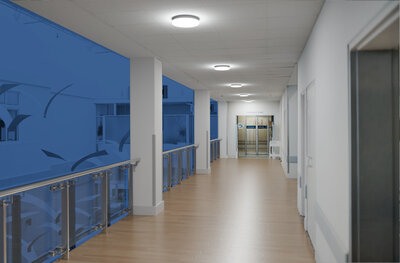

Corridors
Stairways
Bathrooms

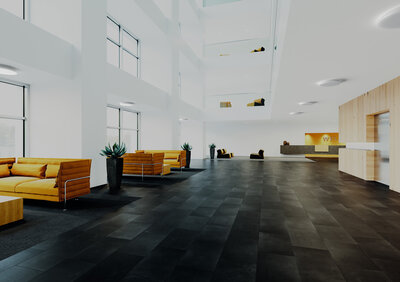

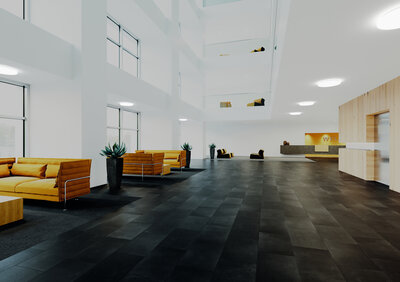

Foyers

Product features

IoT-ready luminaire with DALI-2 technology
Suitable for central battery emergency installations acc. to EN 60598-2-22
Type of protection: IP54 (wall and ceiling)
Impact resistance: IK08
Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C)
Polycarbonate (PC) housing, PC-diffuser
Ambient temperature in operation: -20…+45 °C
Glow Wire Test according to IEC 60695-2-12: 850 °C

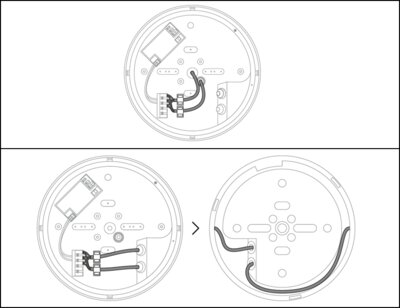

5-pole terminal block, cable cross section up to 5 x 2.5 mm²
Through-wiring possible
Indoor use only, not suitable for outdoor use

Equipment / Accessories

EVERLOOP luminaire: upgrades and replacements available
Decorative silver frame separately available

References / Links

For Guarantee see www.ledvance.com/guarantee

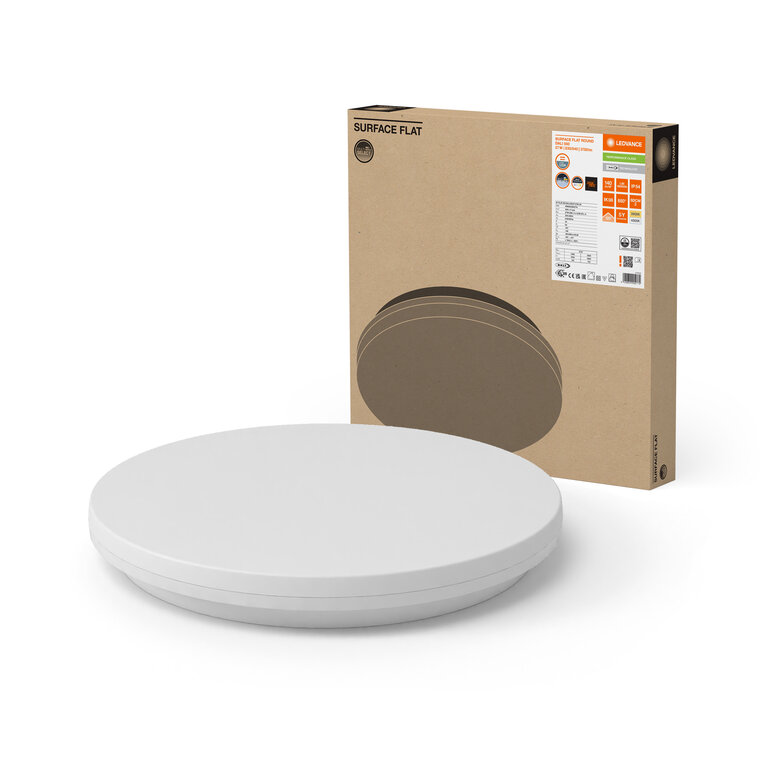

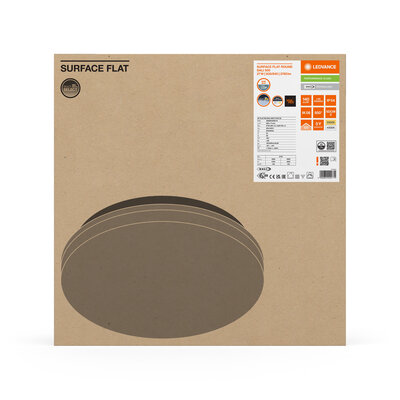

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume

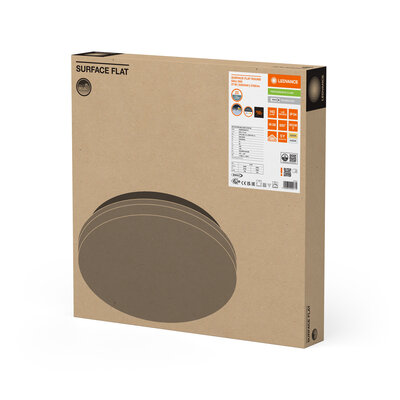

4099854292774	Folding box 1	77 mm x 507 mm x 507 mm	3390.00 g	19.79 dm³
4099854292781	Shipping box 4	520 mm x 327 mm x 530 mm	14410.00 g	90.12 dm³

Accessories Optional

Product image	Product name	EAN
	LISOEV 500 R 27W 830 840 SF FLAT	4099854312236
	SF FLAT 500 ROUND FRAME SI	4099854292972

Upgrade and replacement components

Product image	Product name	Product brand	Product component type	GTIN
	LISOEV 500 R 27W 830 840 SF FLAT	LEDVANCE	LIGHT SOURCE direct	4099854312236

Country-specific information

EAN	SEG number	STK number	EFO number	ELDAS number	UK Org
4099854292774	7511156	4152055	3378127	941201050	437371373
