OSRAM DULUXSTAR MINI TWIST

Choose your product version

8 W/2700 K 220…240 V E27

8 W/6500 K 220…240 V E27

12 W/2700 K 220…240 V E27

12 W/6500 K 220…240 V E27

15 W/2700 K 220…240 V E27

15 W/6500 K 220…240 V E27

18 W/2700 K 220…240 V B22d

18 W/827 E27

20 W/2700 K 220…240 V E27

20 W/6500 K 220…240 V E27

23 W/2700 K 220…240 V E27

23 W/827 220…240 V E27

23 W/6500 K 220…240 V E27

23 W/865 E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal luminous flux Dimmable
DST MITW 8 W/2700 K 220…240 V E27 E27 8 W 220…240 V 10000 h 430 lm
DST MITW 8 W/6500 K 220…240 V E27 E27 8 W 220…240 V 10000 h 430 lm
DST MITW 12 W/2700 K 220…240 V E27 E27 12 W 220…240 V 10000 h 650 lm 54 W
DST MITW 12 W/6500 K 220…240 V E27 E27 12 W 220…240 V 10000 h 660 lm 54 W
DST MITW 15 W/2700 K 220…240 V E27 E27 15 W 220…240 V 10000 h 900 lm 70 W
DST MITW 15 W/6500 K 220…240 V E27 E27 15 W 220…240 V 10000 h 900 lm
DEE MTW 18 W/2700 K 220…240 V B22d B22d 18 W 220…240 V 1120 lm No
DEE TWIST 18 W/827 E27 E27 18 W 220…240 V 1120 lm No
DST MITW 20 W/2700 K 220…240 V E27 E27 20 W 220…240 V 10000 h 1300 lm 94 W No
DST MITW 20 W/6500 K 220…240 V E27 E27 20 W 220…240 V 10000 h 1300 lm
DST MITW 23 W/2700 K 220…240 V E27 E27 23 W 220…240 V 10000 h 1600 lm 112 W No
23 W/827 220…240 V E27 E27 23 W 220…240 V 10000 h 1600 lm 112 W No
DST MITW 23 W/6500 K 220…240 V E27 E27 23 W 220…240 V 10000 h 1600 lm 112 W No
DSST MITW 23 W/865 E27 E27 23 W 220…240 V 10000 h 1600 lm


DEE TWIST 18 W/827 E27

Product benefits
  • Fast return on investment
  • Compact dimensions
  • Up to 80 % less energy consumption compared with ordinary light bulbs
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18 W
Construction wattage 18.00 W
Nominal voltage 220…240 V
Nominal current 180 mA
Power factor λ 0.50

Photometrical data

Luminous flux 1120 lm
Lumen main.fact.at end of nom.life time 0.65
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827

Light technical data

Warm-up time (60 %) 60.00 s
Starting time 2.0 s

Dimensions & Weight

Overall length 138.00 mm
Diameter 56.00 mm
Maximum diameter 49 mm
Product weight 70.00 g

Temperatures & operating conditions

Ambient temperature range -10…+50 °C

Lifespan

Number of switching cycles 4000

Additional product data

Base (standard designation) E27
Mercury content 2.0 mg
Mercury-free No

Capabilities

Dimmable No

Country-specific categorizations

ILCOS FB-18/27/1B-220/240-E27
Order reference EE TWIST18W/827

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 135.00 mm
Height 56.00 mm
Width 56.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Fast return on investment
  • Compact dimensions
  • Up to 80 % less energy consumption compared with ordinary light bulbs
Areas of application
  • General illumination
  • Domestic applications
  • Wherever compact and efficient lamps are needed
  • Wherever cold light colors are needed
  • Outdoor use in enclosed and ventilated luminaires only
Product features
  • Available in 2 light colors: 827 and 865
  • Also available in activating light color LUMILUX® Cool Daylight
  • Average life: up to 8,000 h
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4052899925557 Folding box
1
4052899925786 Shipping box
10		 315 mm x 130 mm x 167 mm 1097.00 g 6.84 dm³

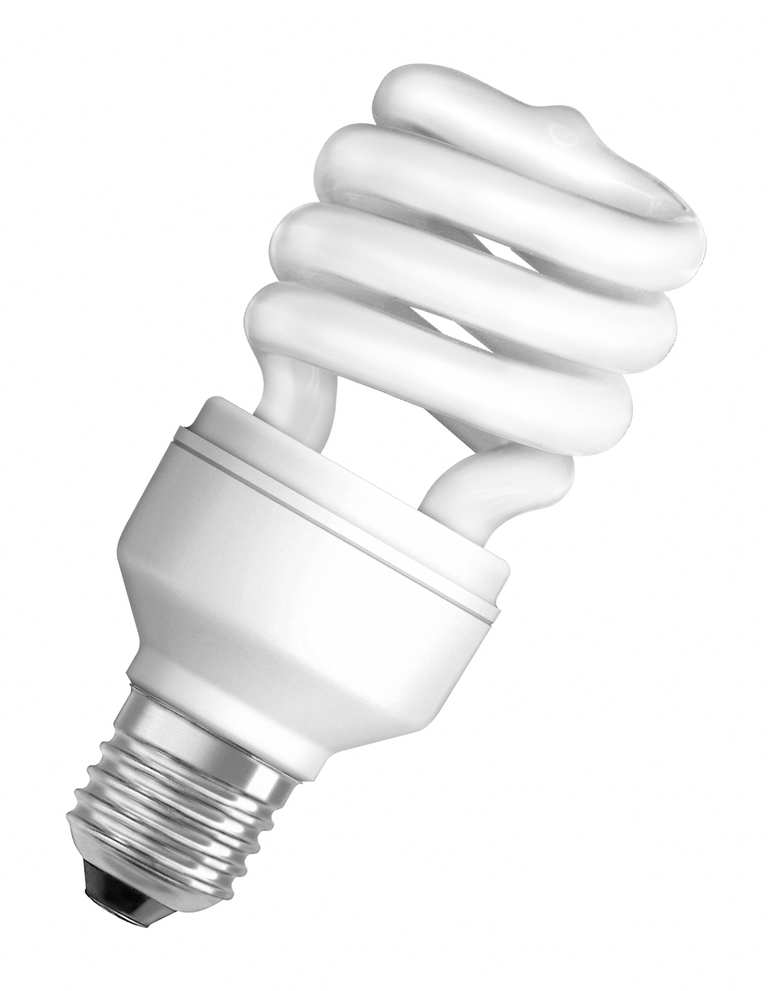

Product image: white background, diagonal
318233_DULUXSTAR MINI TWIST 18W E27 TIF (598.42 KB)

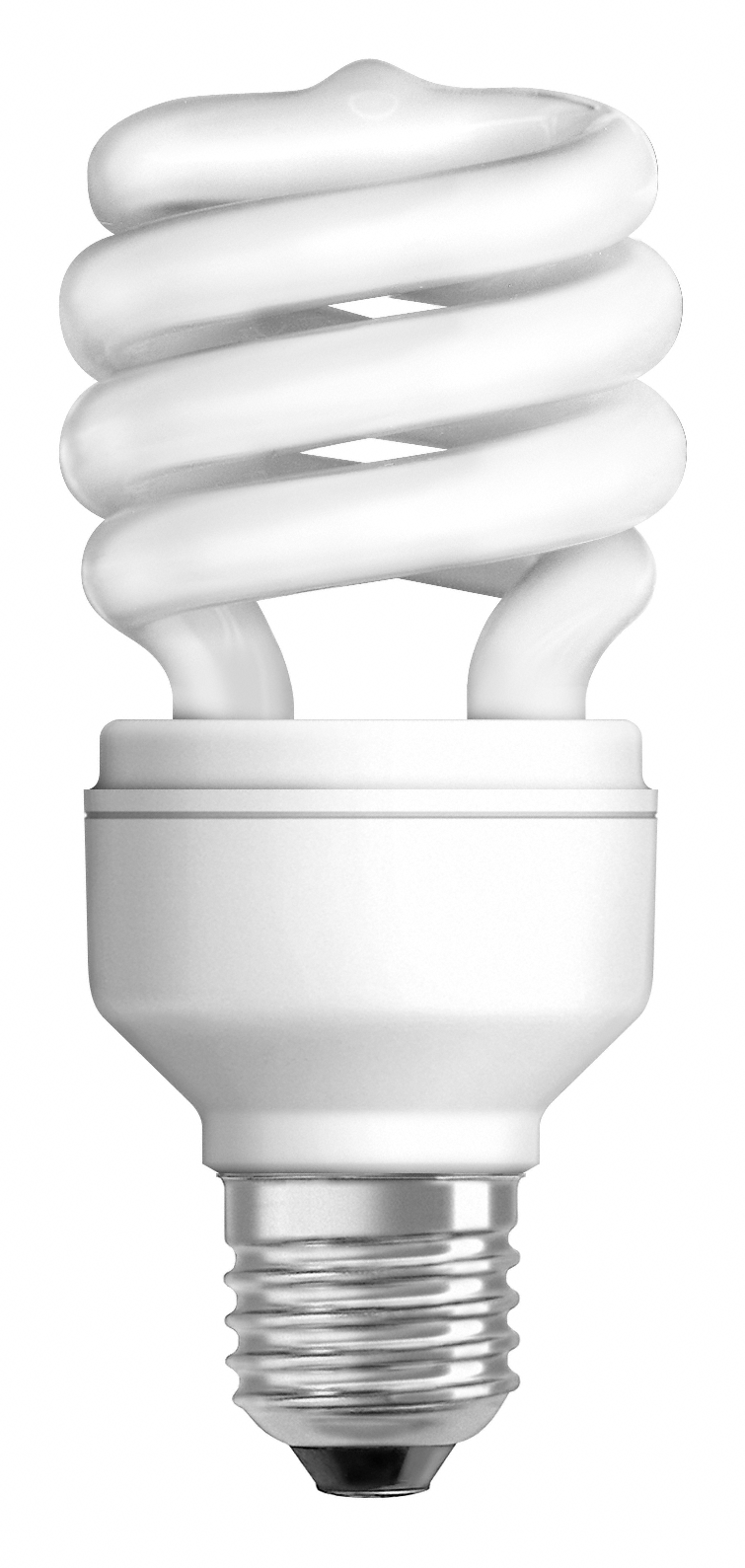

Product image: white background, upright
318234_DULUXSTAR MINI TWIST 18W E27 TIF (464.34 KB)
Product line drawing with letters
319662_OSRAM DULUXSTAR MINI TWIST 18W E27 SVG (12.25 KB)
Product line drawing, front, no dimensions
39877_DULUXSTAR MINI T WIST 23W E27 SVG (11.68 KB)

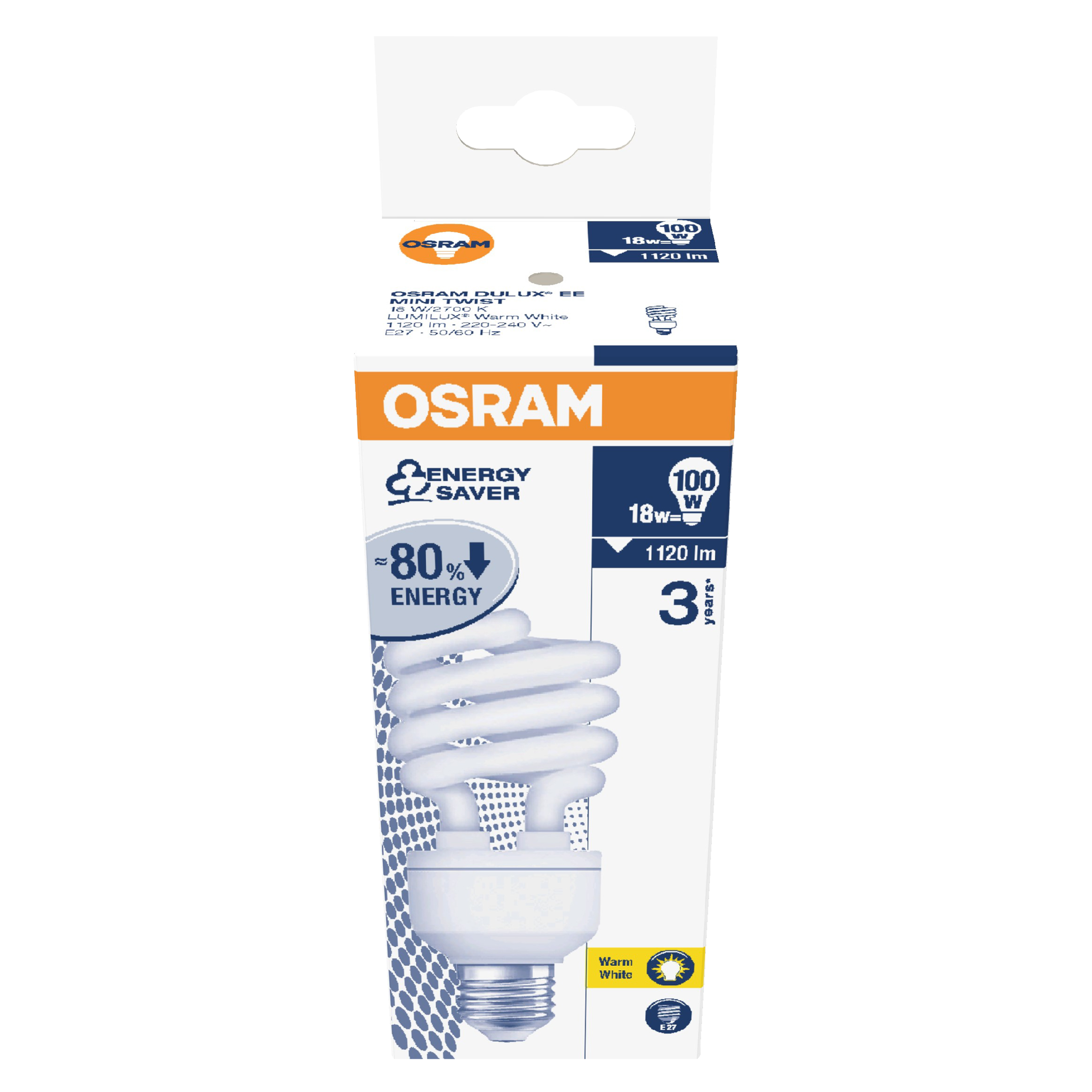

Packaging image, frontal
CFL FC1 EETW 18W 827 E 27 MiCh OSRAM JPG (1.31 MB)
Spectral power distribution
349636_FL_827 PNG (92.23 KB)
