LUMILUX T8

Choose your product version

Phase out

15 W/827

Phase out

15 W/830

Phase out

15 W/840

Phase out

15 W/840

Phase out

15 W/865

Phase out

16 W/827

18 W/

18 W/

18 W/

Phase out

18 W/827

18 W/2700 K

18 W/3000 K

Phase out

18 W/830

18 W/3000 K

Phase out

18 W/840

Phase out

18 W/840

18 W/4000 K

18 W/860

18 W/6500 K

Phase out

18 W/865

18 W/6500 K

Phase out

18 W/880

Phase out

23 W/840

30 W/

Phase out

30 W/827

Phase out

30 W/830

30 W/4000 K

Phase out

30 W/840

Phase out

30 W/840

30 W/6500 K

Phase out

30 W/865

Phase out

30 W/880

36 W/

Phase out

36 W/827

36 W/2700 K

36 W/3000 K

Phase out

36 W/830

36 W/3000 K

36 W/830

Phase out

36 W/840

Phase out

36 W/840

Phase out

36 W/840

36 W/4000 K

36 W/4000 K

36 W/5400 K

Phase out

36 W/865

36 W/6500 K

36 W/860

Phase out

36 W/880

Phase out

38 W/830

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
L 15 W/827 G13 15 W 55 V 20000 h 950 lm Yes
L 15 W/830 G13 15 W 55 V 20000 h 950 lm Yes
L 15 W/840 G13 15 W 55 V 20000 h 950 lm Yes
L 15 W/840 G13 15 W 55 V 20000 h 950 lm Yes
L 15 W/865 G13 15 W 55 V 20000 h 900 lm Yes
L 16 W/827 G13 16 W 90 V 20000 h 1250 lm Yes
L 18 W/ G13 18 W 220 V 20000 h Yes
L 18 W/ G13 18 W 220 V 20000 h Yes
L 18 W/ G13 18 W 220 V Yes
L 18 W/827 G13 18 W 57 V 20000 h 1300 lm Yes
L 18 W/2700 K G13 18 W 57 V 20000 h 1350 lm Yes
L 18 W/3000 K G13 18 W 220 V Yes
L 18 W/830 G13 18 W 57 V 20000 h 1300 lm Yes
L 18 W/3000 K G13 18 W 57 V 20000 h 1350 lm Yes
L 18 W/840 G13 18 W 57 V 20000 h 1300 lm Yes
L 18 W/840 G13 18 W 57 V 20000 h 1300 lm Yes
L 18 W/4000 K G13 18 W 57 V 20000 h 1350 lm Yes
L 18 W/860 G13 18 W 220 V Yes
L 18 W/6500 K G13 18 W 220 V Yes
L 18 W/865 G13 18 W 57 V 20000 h 1250 lm Yes
L 18 W/6500 K G13 18 W 57 V 20000 h 1300 lm Yes
L 18 W/880 G13 18 W 57 V 20000 h 1200 lm Yes
L 23 W/840 G13 23 W 94 V 20000 h 1900 lm Yes
L 30 W/ G13 30 W 220 V 5000 h Yes
L 30 W/827 G13 30 W 96 V 20000 h 2400 lm Yes
L 30 W/830 G13 30 W 96 V 20000 h 2400 lm Yes
L 30 W/4000 K G13 30 W 220 V 20000 h Yes
L 30 W/840 G13 30 W 96 V 20000 h 2400 lm Yes
L 30 W/840 G13 30 W 96 V 20000 h 2400 lm Yes
L 30 W/6500 K G13 30 W 220 V 20000 h Yes
L 30 W/865 G13 30 W 96 V 20000 h 2350 lm Yes
L 30 W/880 G13 30 W 96 V 20000 h 2350 lm Yes
L 36 W/ G13 36 W 220 V Yes
L 36 W/827 G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/2700 K G13 36 W 220 V 20000 h 3350 lm Yes
L 36 W/3000 K G13 36 W 220 V Yes
L 36 W/830 G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/3000 K G13 36 W 103 V 20000 h 3350 lm Yes
L 36 W/830 G13 36 W 20000 h 3350 lm Yes
L 36 W/840 G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/840 G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/840 G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/4000 K G13 36 W 220 V 3350 lm Yes
L 36 W/4000 K G13 36 W 103 V 20000 h 3350 lm Yes
L 36 W/5400 K G13 36 W Yes
L 36 W/865 G13 36 W 103 V 20000 h 3150 lm Yes
L 36 W/6500 K G13 36 W 103 V 20000 h 3250 lm Yes
L 36 W/860 G13 36 W 220 V 3250 lm Yes
L 36 W/880 G13 36 W 103 V 20000 h 3000 lm Yes
L 38 W/830 G13 38 W 104 V 20000 h 3300 lm Yes
Phase out


L 30 W/880

Product benefits
  • Proven lamp technology
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 30 W
Construction wattage 31.80 W
Nominal voltage 96 V
Nominal current 0.44 A

Photometrical data

Luminous flux 2350 lm
Luminous efficacy 74 lm/W
Light color (designation) LUMILUX SKYWHITE
Color temperature 8000 K
Color rendering index Ra ≥80
Light color 880
Rated LLMF at 2,000 h 0.96
Rated LLMF at 4,000 h 0.94
Rated LLMF at 6,000 h 0.93
Rated LLMF at 8,000 h 0.91
Rated LLMF at 12,000 h 0.91
Rated LLMF at 16,000 h 0.90
Rated LLMF at 20,000 h 0.89

Dimensions & Weight

Overall length 908.80 mm
Length with base excl. base pins/connection 895,00 mm
Diameter 25.50 mm
Tube diameter 26 mm
Product weight 120.00 g

Lifespan

Service life 16000 h 1)
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.99
Rated lamp survival factor at 16,000 0.90
Rated lamp survival factor at 20,000 h 0.50
Lifespan B50 20000 h

1) With preheat ECG

Additional product data

Base (standard designation) G13
Mercury content 3.0 mg

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class G
Energy consumption 32.00 kWh/1000h

Country-specific categorizations

ILCOS FD-30/880-E-G13-26/895
Order reference L 30W/880 SKYWH

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER_FL
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 908.80 mm
Height 25.50 mm
Width 25.50 mm
Chromaticity coordinate x 0,294
Chromaticity coordinate y 0,309
Beam angle correspondence SPHERE_360
EPREL ID 546374
Model number AC34121

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Proven lamp technology
Areas of application
  • Public buildings
  • Office lighting
  • Industry
  • Shops
  • Supermarkets and department stores
  • Street lighting
  • Outdoor applications only in suitable luminaires
Product features
  • Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
  • Good color rendering index
  • Dimmable
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321027986 Sleeve
1		 905 mm x 28 mm x 27 mm 144.00 g 0.68 dm³
4008321027993 Shipping box
25		 929 mm x 150 mm x 155 mm 3910.00 g 21.60 dm³
Declarations of conformity
EC Declaration of Conf ormity - 2021 9C1-4071 456-EN-01 - T8 PDF (153.03 KB)
Product image: white background, diagonal
313063_LUMILUX T8 XT / LUMILUX T8 XXT TIF (2.8 MB)
Product line drawing with letters
324360_FLUORESCENT LAM P (BASIC T8/LUMILUX T8 ) G13 BASE SVG (5.67 KB)
Energy label
EL-4008321027986-AC341 21 PDF (21.41 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)

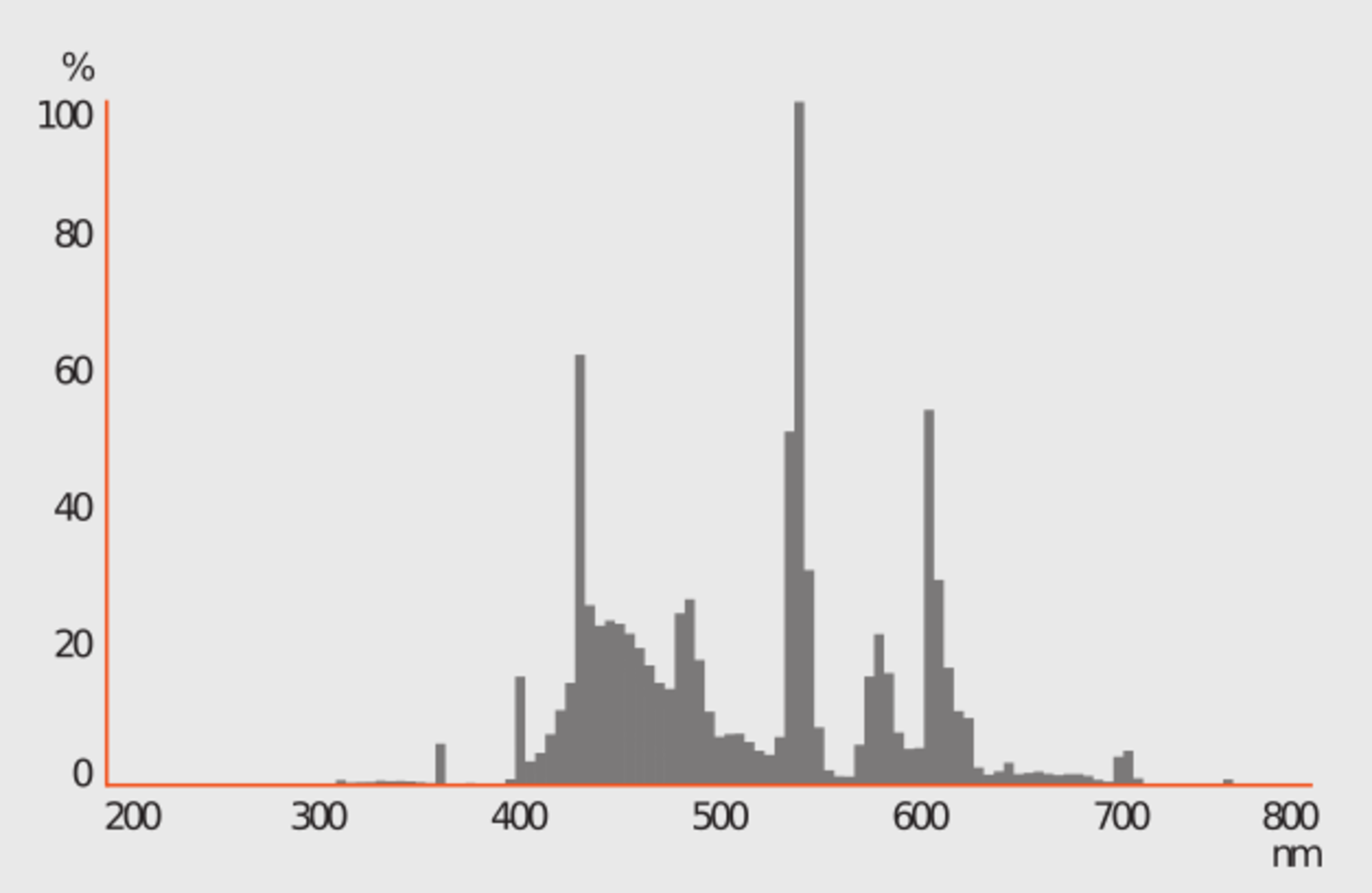

Spectral power distribution
349620_FL_880 PNG (92.38 KB)
EAN SEG number STK number EFO number ELDAS number
4008321027986 8328586 4934888 3860917 946018140
